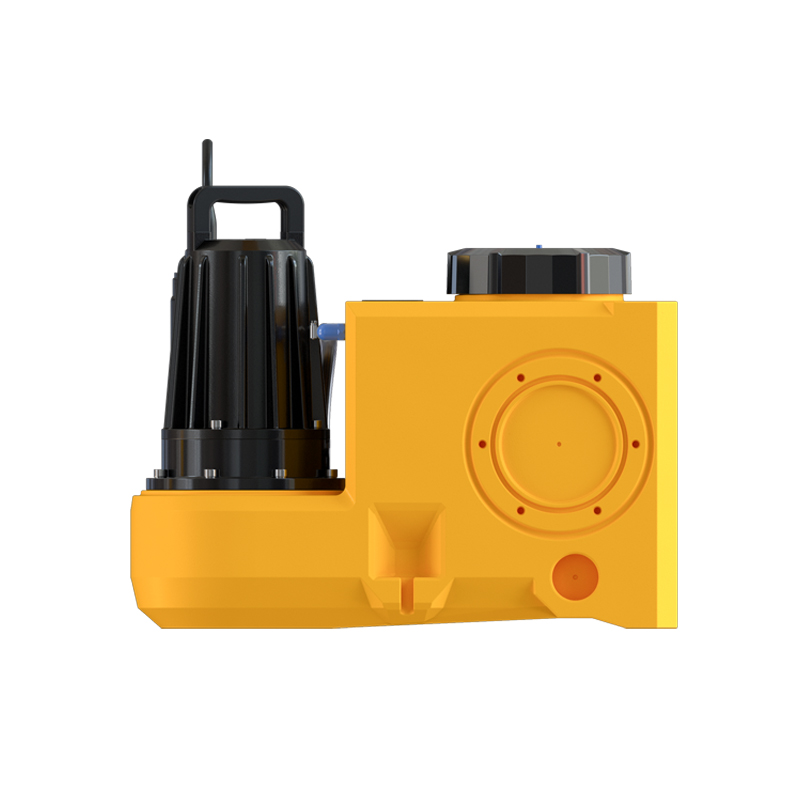

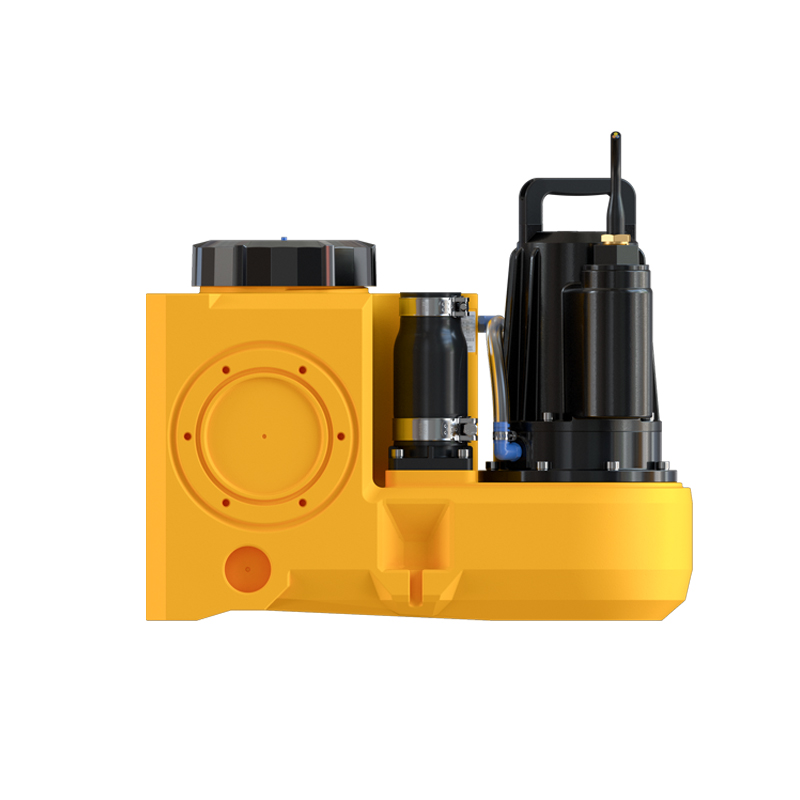

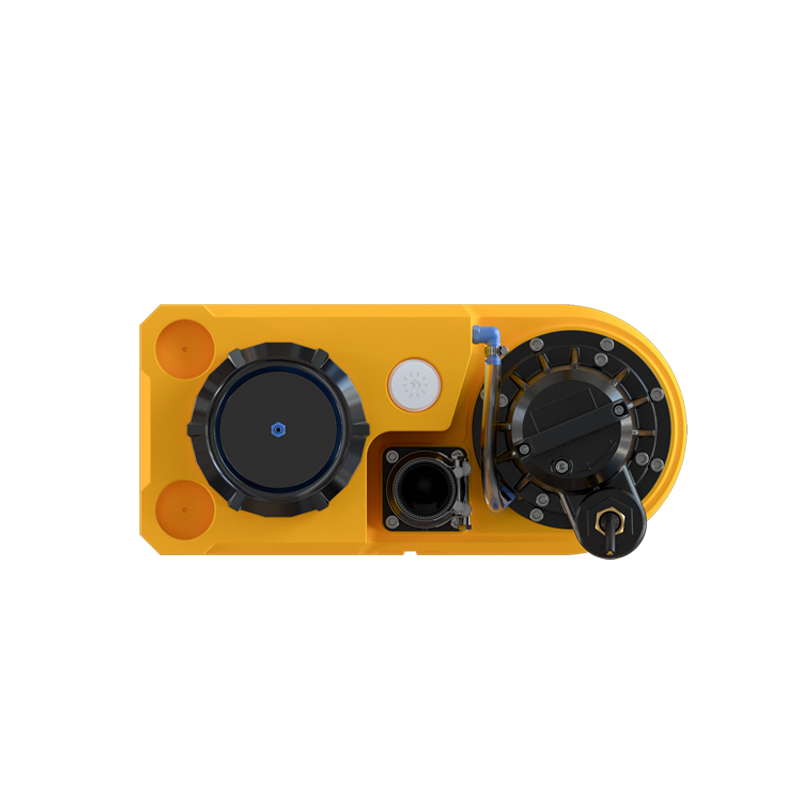

Intelligent Sewage Lifting Units -External single vortex pump
Characteristic
- Heavy-duty cast-iron, oil-immersed motor for quieter operation and extended service life.
- External large-passage vortex pump rated for S1 continuous duty, designed to prevent clogging and ensure stable operation.
- IoT system with remote monitoring, control, and alarm notifications.
- Advanced, high-precision, and stable electronic pressure level sensor.
- Double mechanical seals with a 150ml oil chamber for superior sealing.
- Fully enclosed HDPE container with 21- liter capacity.
- Anti-clog dual-seal flexible inlet connection technology.
- Flexible connection low-noise swing flap check valve
- IP68 protection rating, fully submersible (except for the controller).

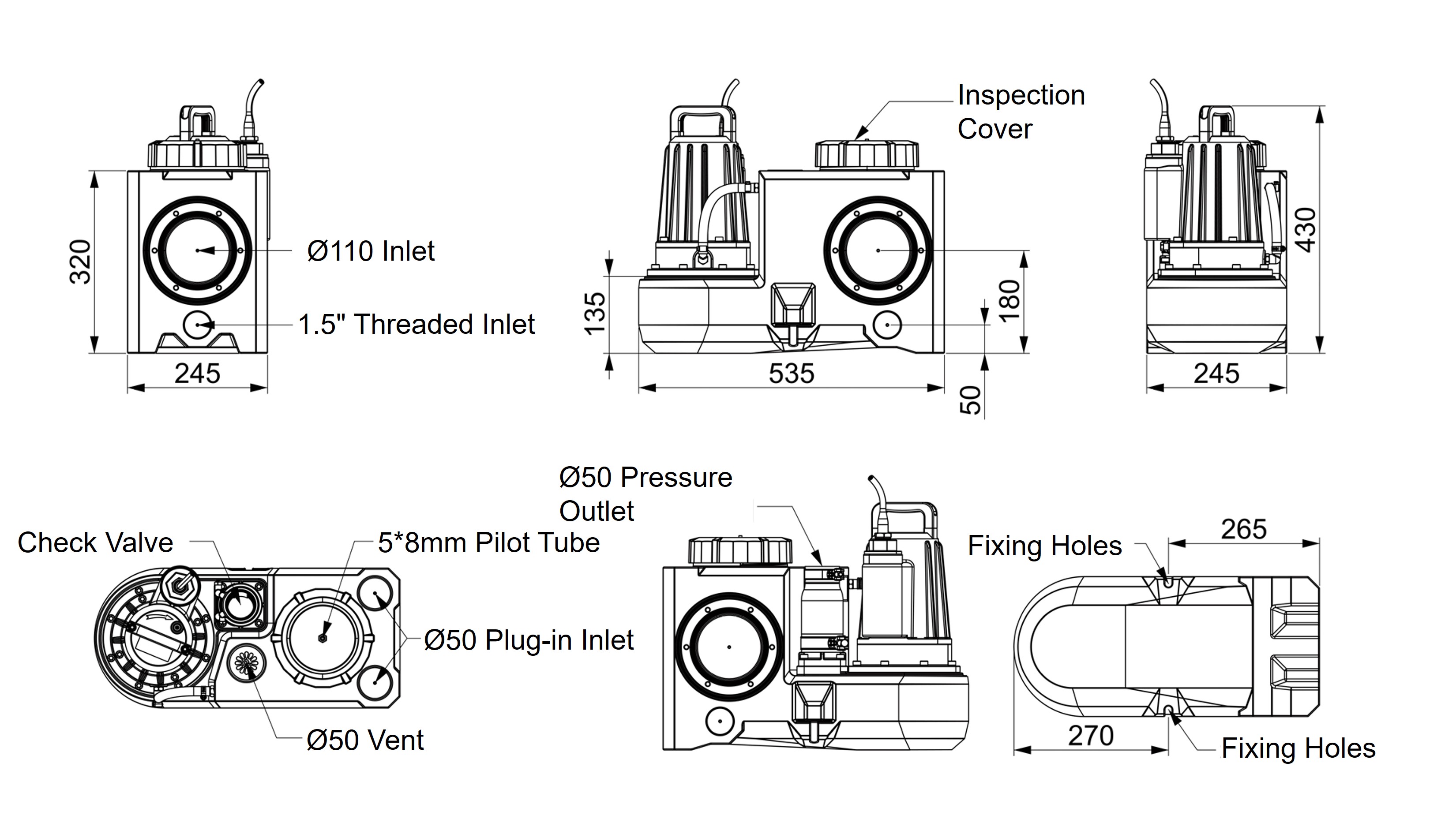

- Inlets: 3×Φ110，4×Φ50
- Pressure outlet：1×Φ50mm
Application
- Suitable for sewage discharge from private basement bathrooms and kitchens in villas and large apartment complexes.

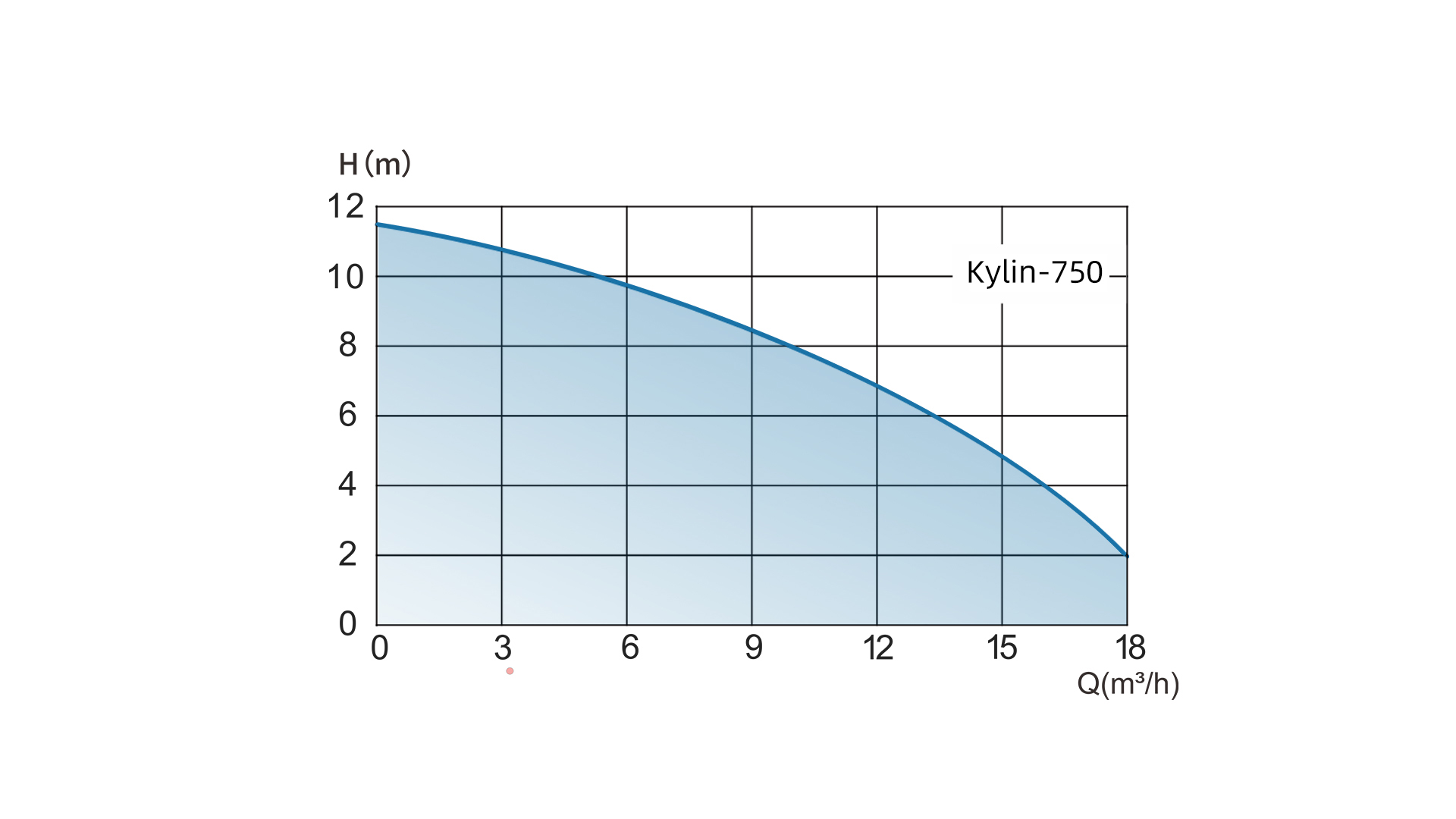

Technical Parameters
| Model | Power | Voltage | Current | Speed | Qmax | Hmax | Solid Handling | Weight |
| Kylin-750 | 0.75kW | 220V | 6A | 2800rpm | 18m³/h | 11.5m | 40mm | 30kg |
