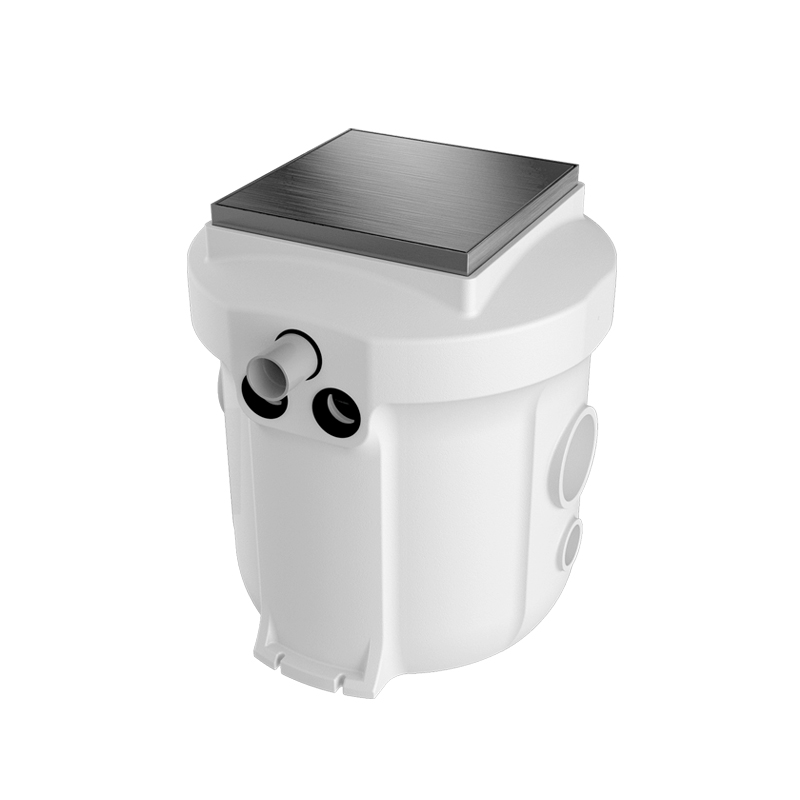

Underground Sewage Lifting Units
Characteristic
-Built-in two sets of oil-immersed stainless steel submersible pumps, offering quiet operation, stability, and long service life.
-Hidden underground design for a stylish and aesthetic installation (can also be installed on the ground).

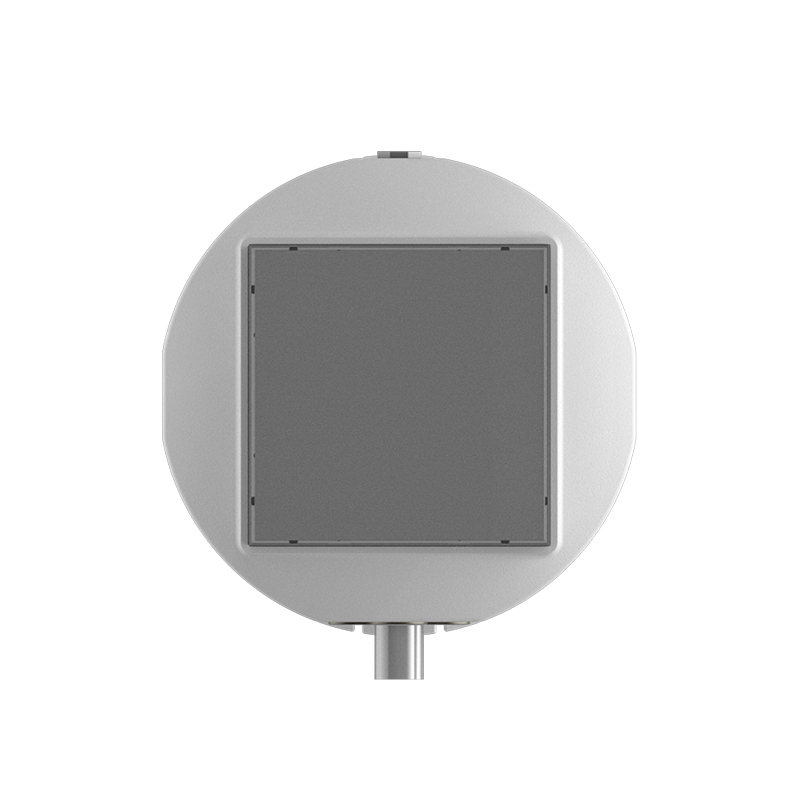

-Pre-installed with a 304 stainless steel floor drain, which serves both as a top inlet and for maintenance purposes.
-The floor drain cover can be placed either side up, and when reversed, allows for DIY floor tile customization.
-Equipped with a magnetic check valve-based anti-odor drain core, completely eliminating backflow odors.
-Cylindrical casing with a futuristic appearance that also effectively resists the pressure from underground installation.
-Intelligent AIZL-ICM controller, supporting networking, remote control, debugging, and alarm notifications.
-Utilizes an electronic pressure-sensitive liquid level sensor to ensure precise control, stability, and anti-clogging functionality.
-Anti-floating base design at the bottom.
-pressure drain outlet：φ50mm

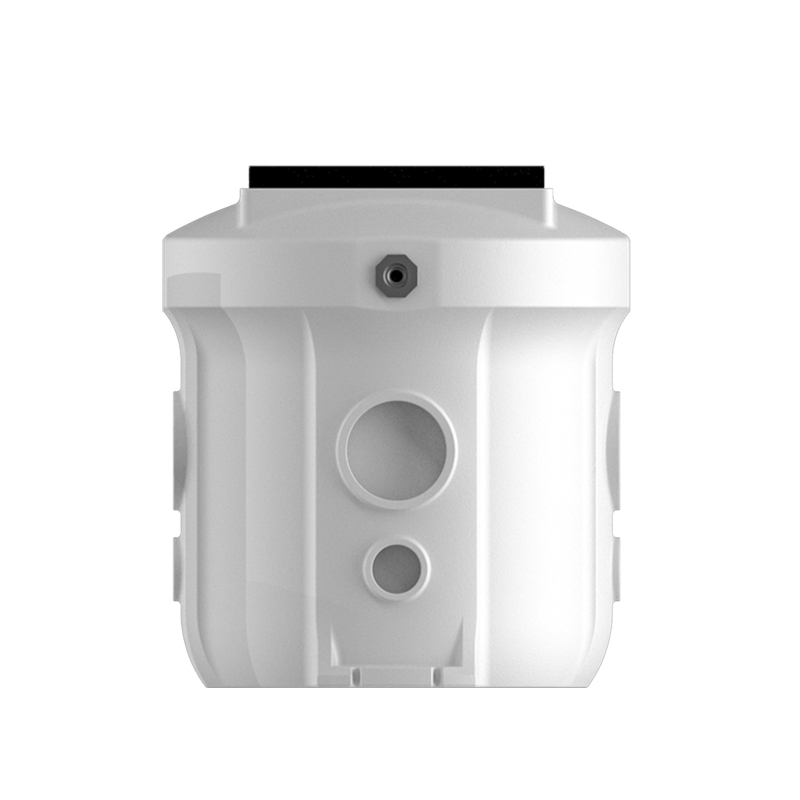

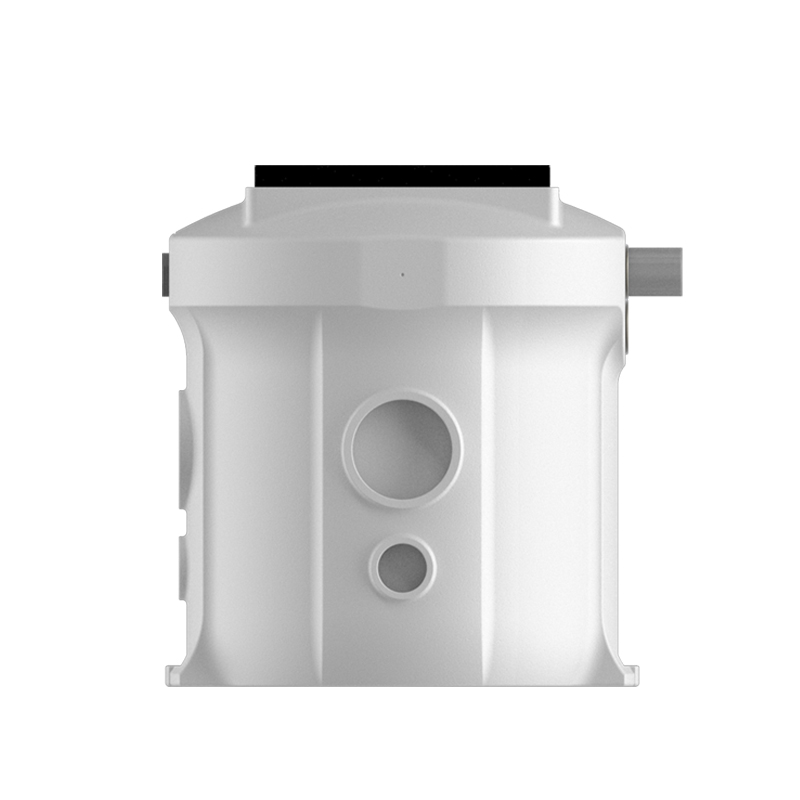

-water inlet：3×φ110mm，3×φ50mm、1×water entry through top floor drain
-Wiring Hole：φ50mm
APPLICATION
• Rainwater drainage and lifting in the sunken courtyard and garden of a villa.
• Sewage lifting and discharge for kitchen, laundry room, and spa areas.

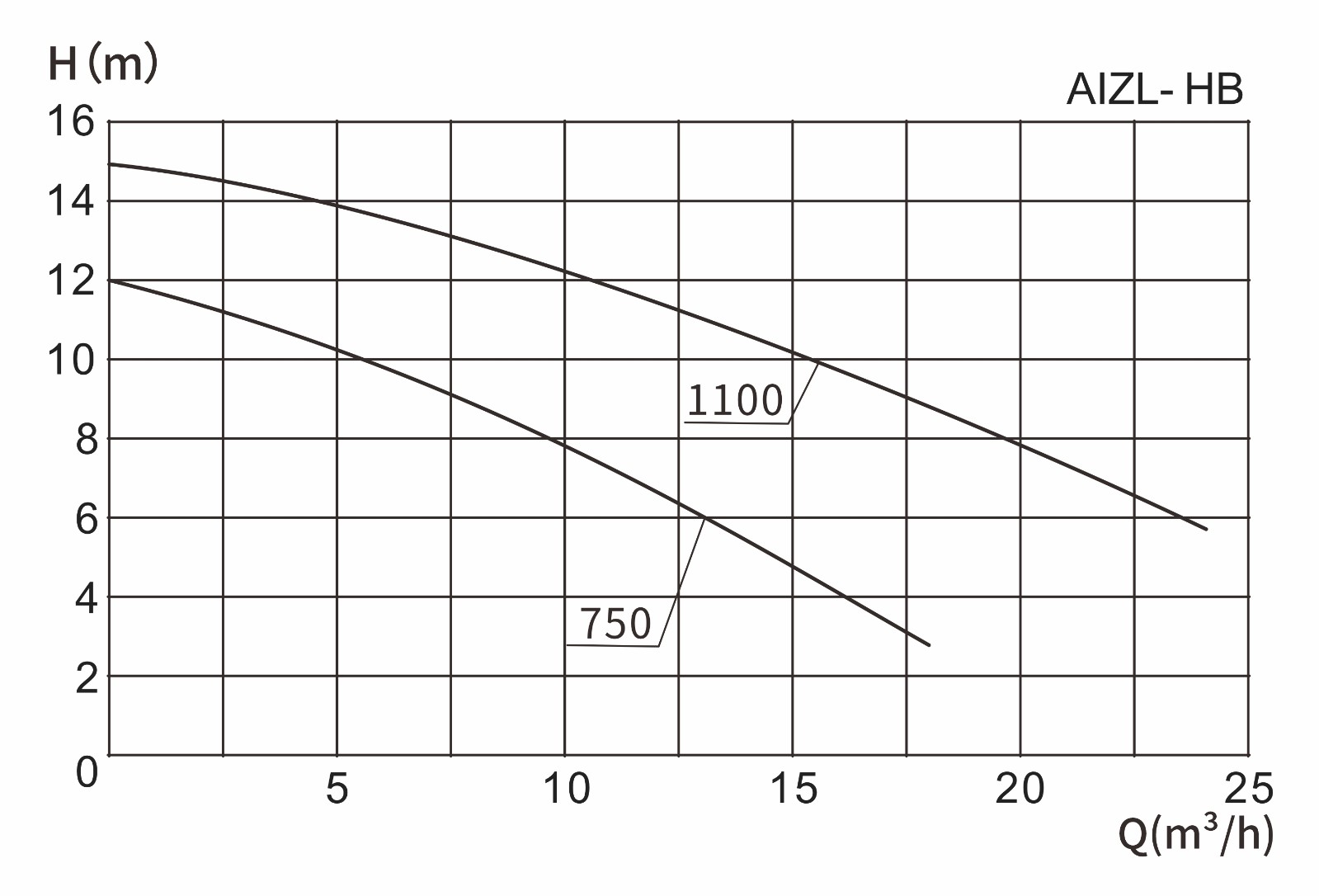

TECHNICAL PARAMETERS
Type | No. | P
(KW) | U [V] | I [A] | n [min-1] | Qmax [m3/h] | Hmax [m] | Solids Handling(mm) | Weight
(Kg) |
AIZL-HB750 | 11090 | 0.75 | 220 | 3.1 | 2850 | 18 | 12 | 25 | 63.5 |
AIZL--HB1100 | 11094 | 1.1 | 220 | 5.8 | 2850 | 24 | 15 | 25 | 68 |
