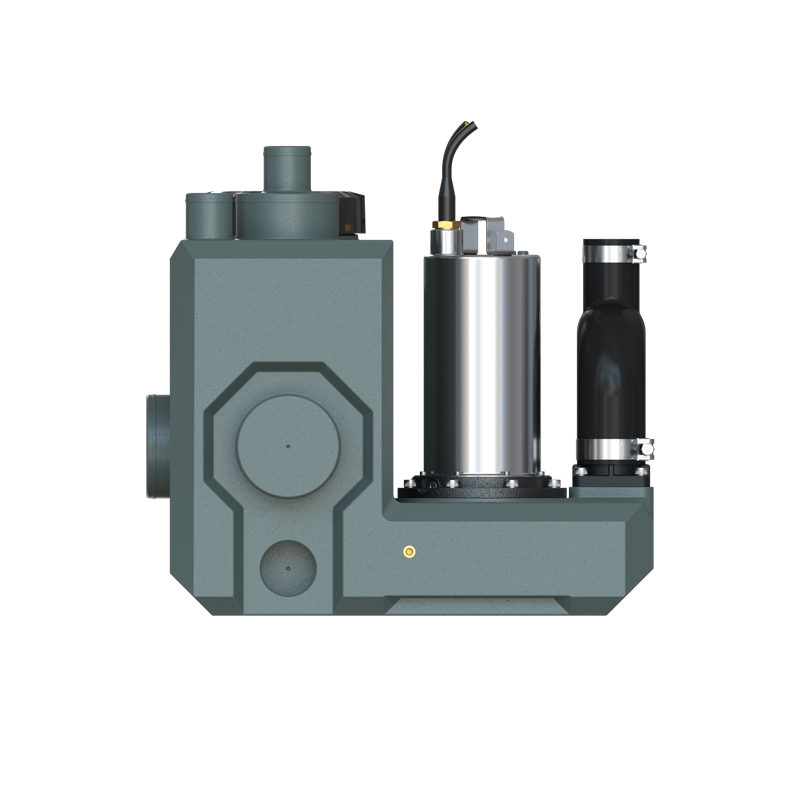

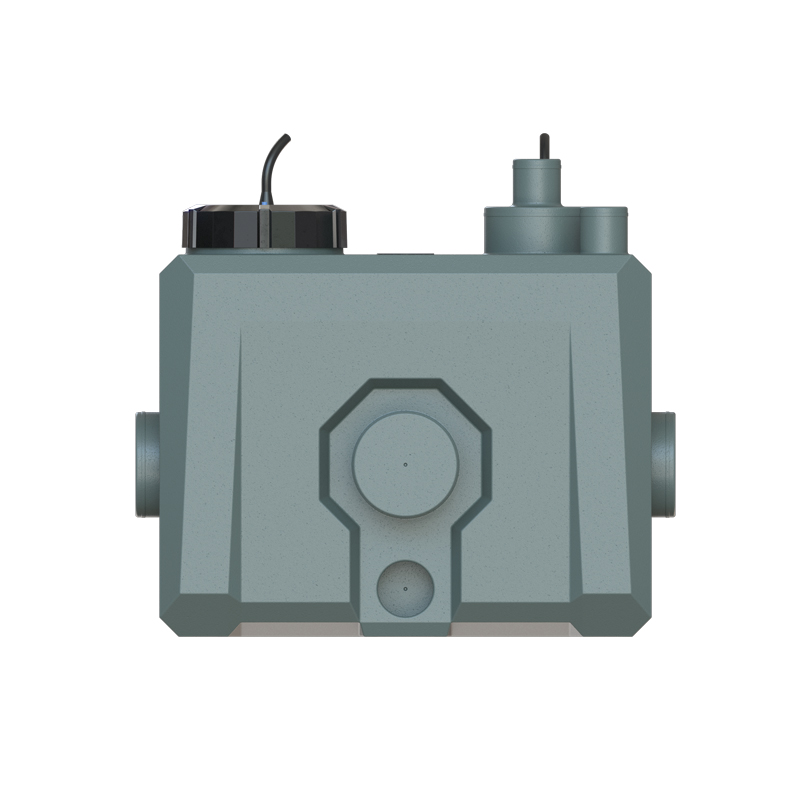

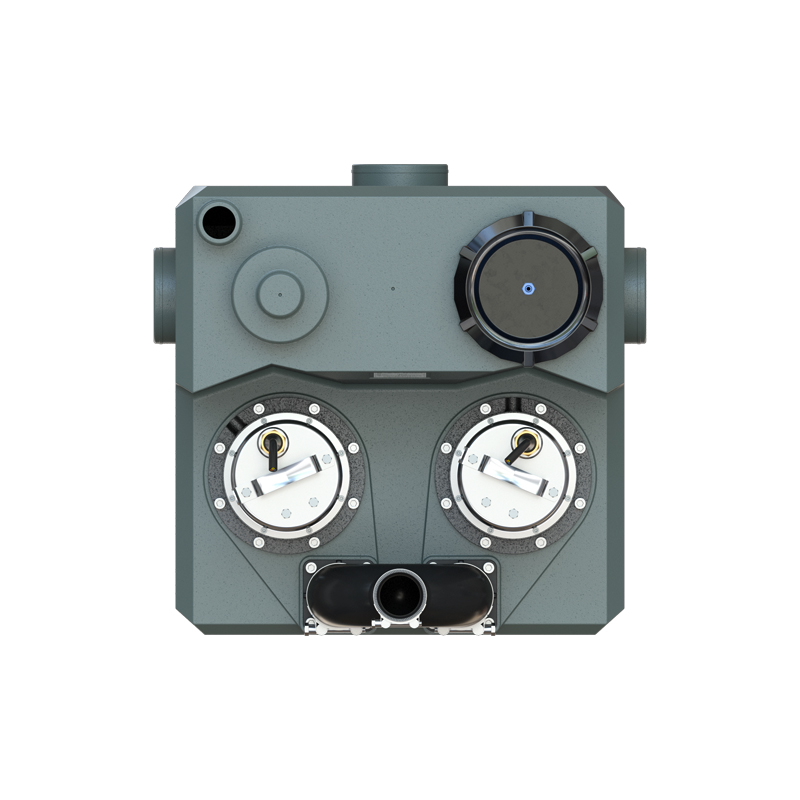

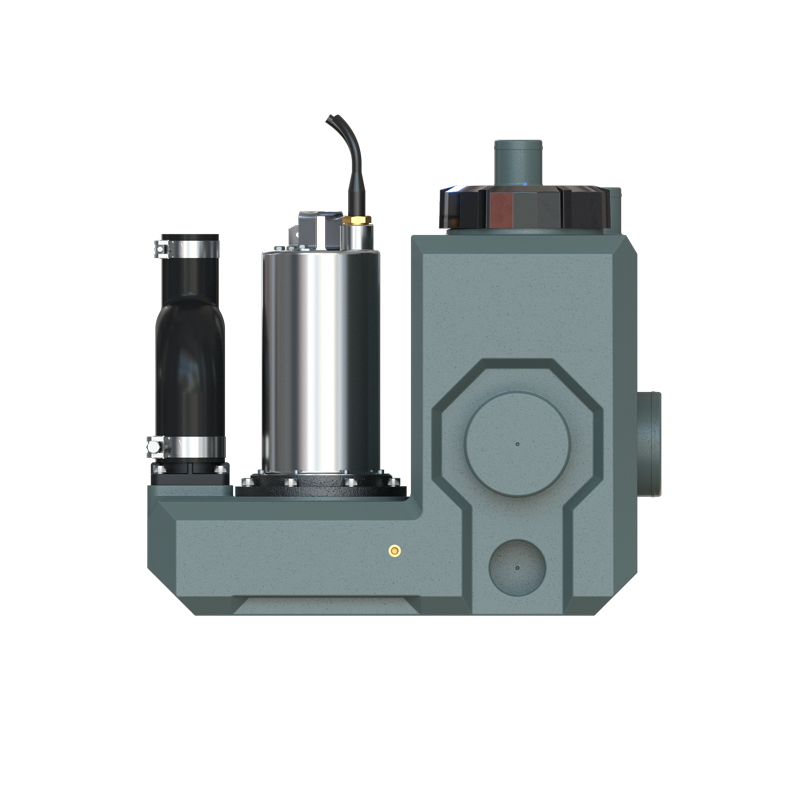

Intelligent Sewage Lifting Units -External double vortex pump

CHARACTERISTIC

• S1 standard motor, which can work continuously.

• 2 sets of external large-diameter vortex pumps to prevent blockage.

• Oil cooled 304 stainless steel motor which has low operation noise and longer service life.

• Intelligent AIZL-ICM controller - IoT Function, remote control, debugging, and push notifications.

• HD touch screen makes display and control more convenient.

• Precise electronic pressure sensor, which can monitor accurate liquid level and avoid winding.

• Adopt double-end mechanical seal and 500ml oil chamber seal.

• Fully enclosed HDPE container with 60 liters capacity.

• The protection grade is IP68-fully immersed (except for the controller).

• Swing flap check valve with low noise.

• Φ 75 large diameter liquid level detection sensor to avoid detection failure.

• 360 ° rotary high-pressure backwashing system (optional).

• Water seepage monitoring alarm and tap water shutoff linkage system (optional).

• Operation temperature max 60 ℃, it can reach 90 ℃ in a short time.

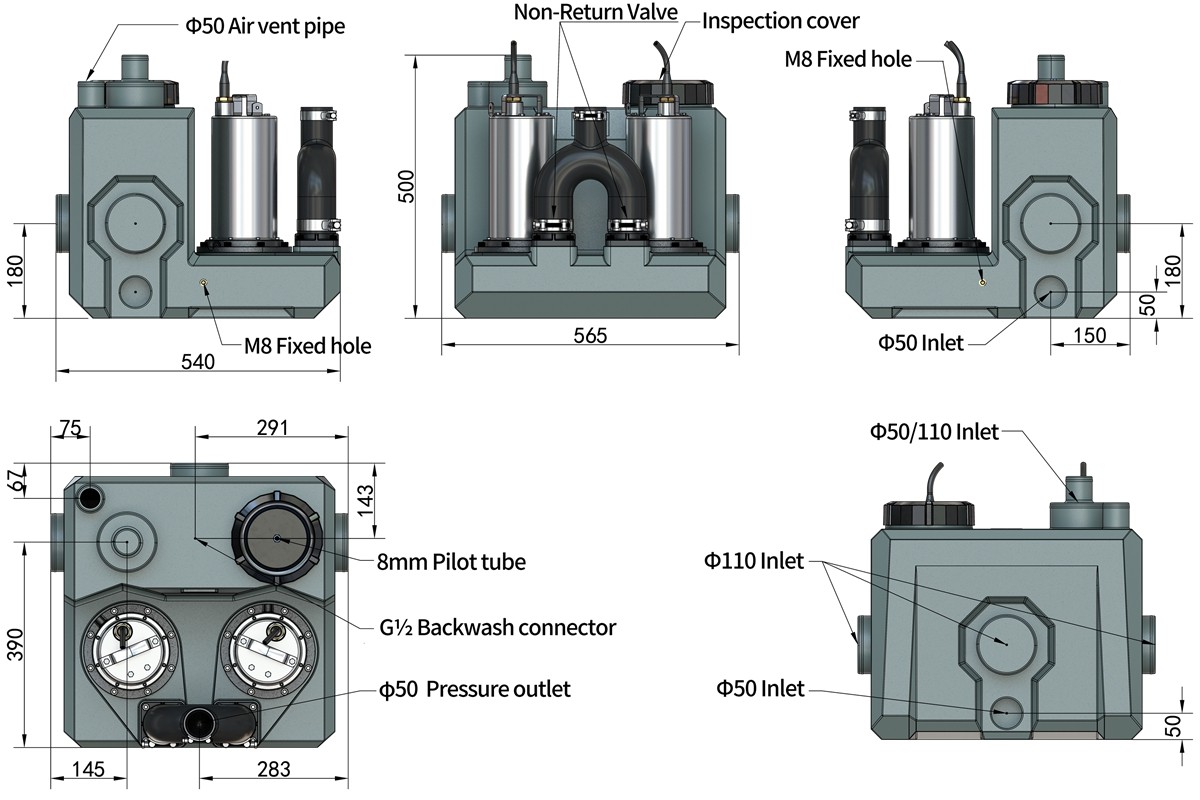

• Inlets: 3 ×φ 110，3 ×φ 50，1 ×φ 50/110

• Vent: φ 50

Application

• Sewage discharge from private basement’s bathrooms and kitchens in villas and large flat layer.

• Sewage discharge from restrooms and operation rooms in newly built and reconstructed small commercial places.

Scope of supply

-PE water collection tank, integrated check valve, stainless steel oil-cooled water pump with 3.5M cable, water flexible connectors and fasteners, pressure outlet pipe kit, vents flexible connectors and fasteners and air pressure sensing tube.

- intelligent controller

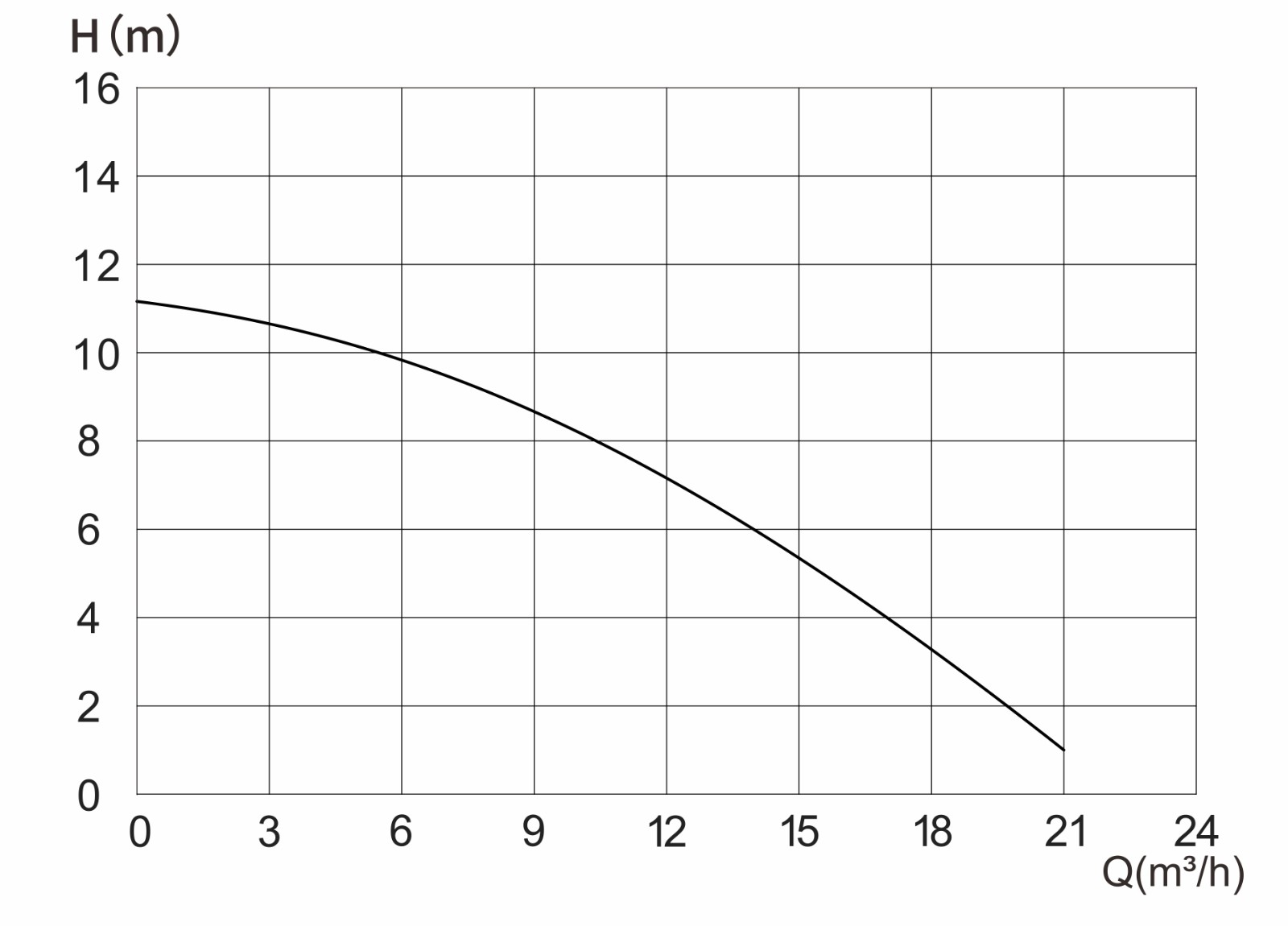

TECHNICAL PARAMETERS

-Special backwash kit for sewage lifting units, including special backwash head, special control valve and connectors

-Water seepage detection kit, including 3.5m long electrode wire and monitoring probe

-Water leakage detection kit, including 3.5m long electrode wire,monitoring probe and special control valve
