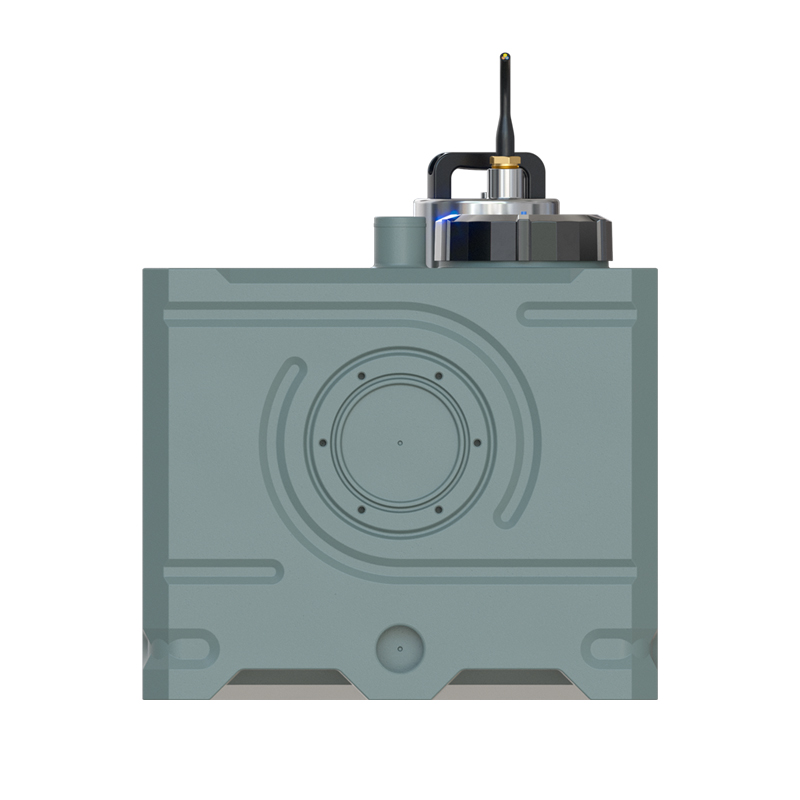

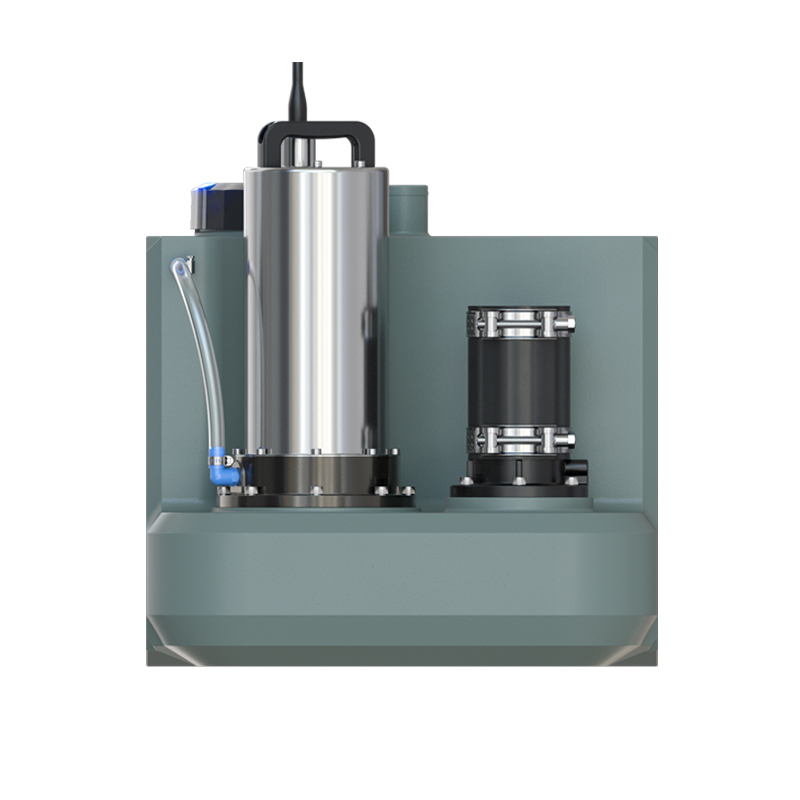

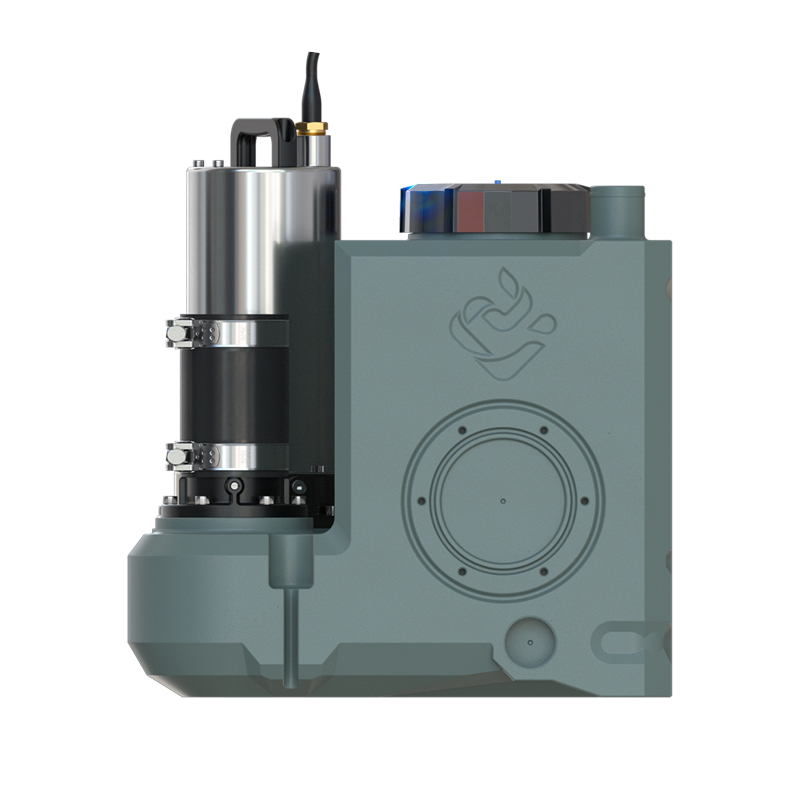

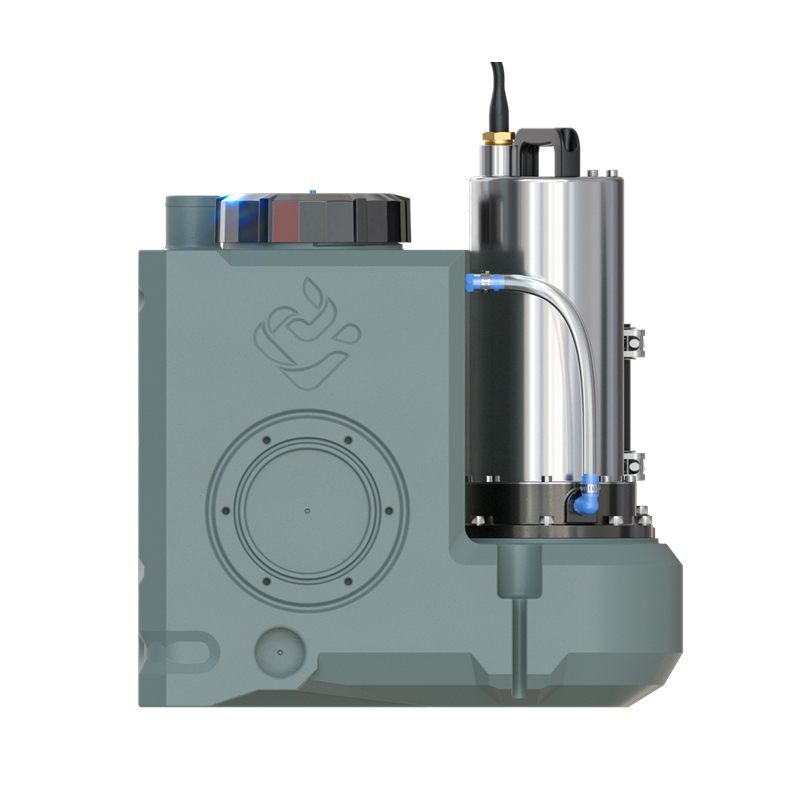

Intelligent Sewage Lifting Units -External single vortex pump

-Characteristic

-S1 Duty motor, which can work continuously.

-External 50mm large-diameter vortex pump to prevent blockage.

-Oil cooled 304 stainless steel motor which has low operation noise and longer service life.

- Intelligent AIZL-ICM controller - IoT Function, remote control, debugging, and push notifications.

-HD touch screen makes display and control more convenient.

-Precise electronic pressure sensor, which can monitor accurate liquid level and avoid winding.

- Adopt double-end mechanical seal and 150ml oil chamber seal.

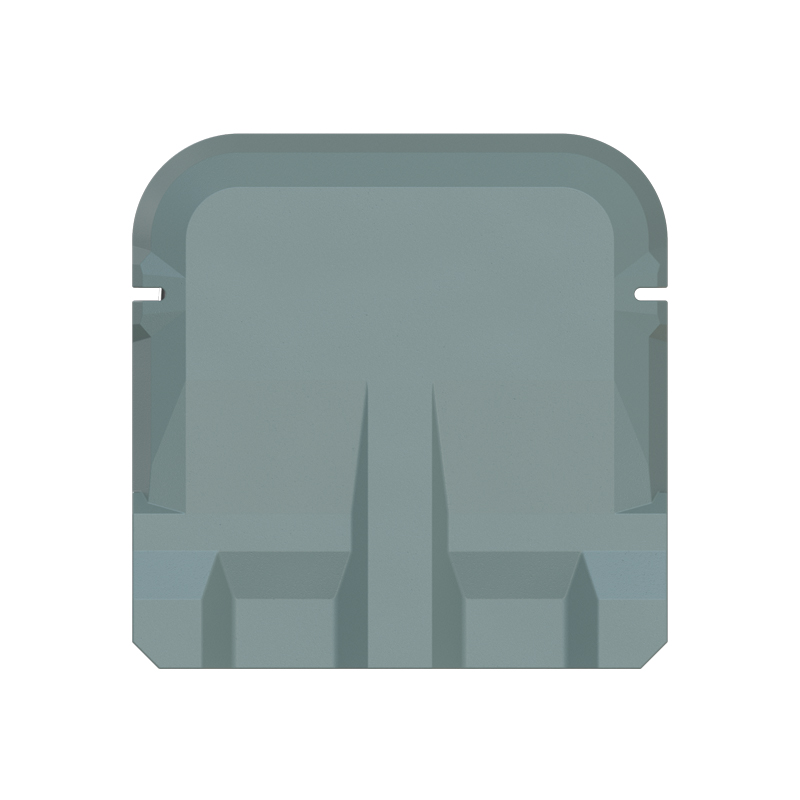

-Fully enclosed HDPE container with 60 liters capacity.

-The protection grade is IP68-fully immersed (except for the controller).

-Swing flap check valve with low noise.

-Φ 75 large diameter liquid level detection sensor to avoid detection failure.

-360 ° rotary high-pressure backwashing system (optional).

-Water seepage monitoring alarm and tap water shutoff linkage system (optional).

-Operation temperature max 60 ℃, it can reach 90 ℃ in a short time.

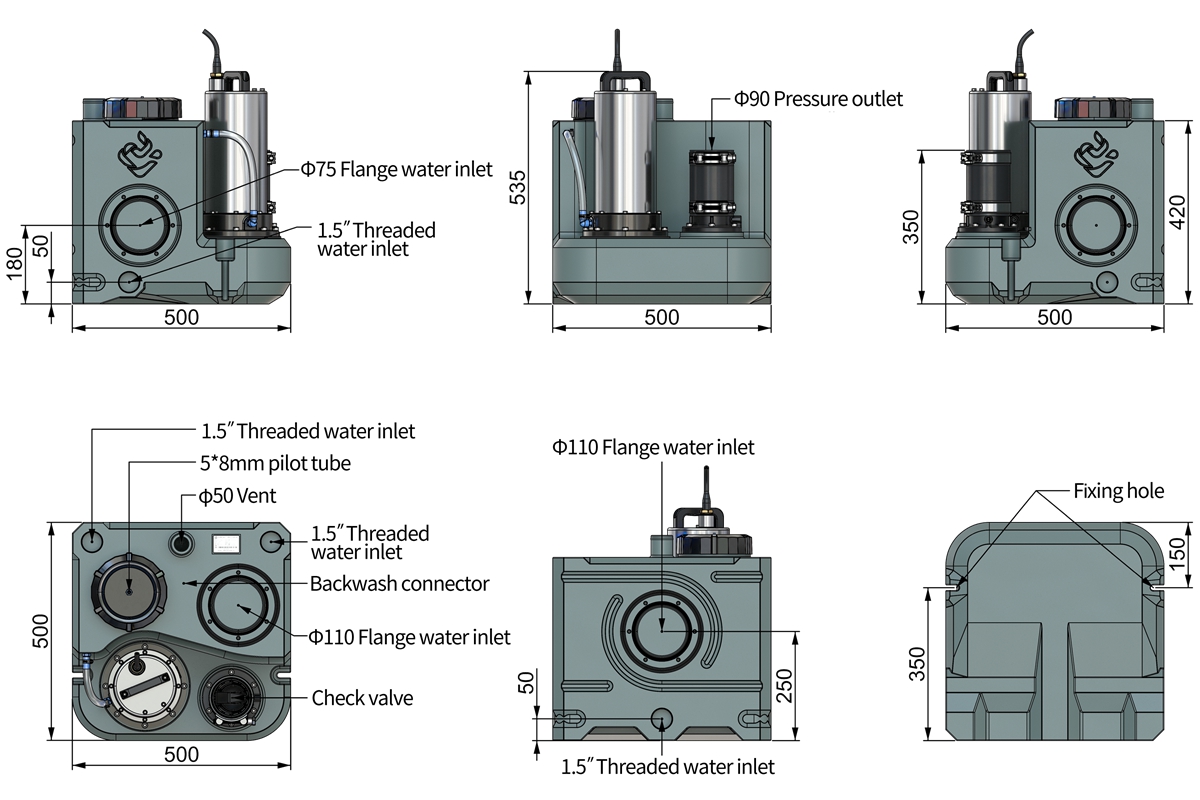

- Inlets：4×Φ110，5×Φ50

- Vent：φ50

Application

• Sewage discharge from private basement’s bathrooms and kitchens in villas and large flat layer.

• Sewage discharge from restrooms and operation rooms in newly built and reconstructed small commercial places.

Scope of supply

-PE water collection tank, integrated check valve, stainless steel oil-cooled water pump with 3.5M cable, flexible inlet connectors and fasteners, pressurized outlet pipe kit, vents flexible connectors and fasteners and air pressure sensing tube.

- intelligent controller

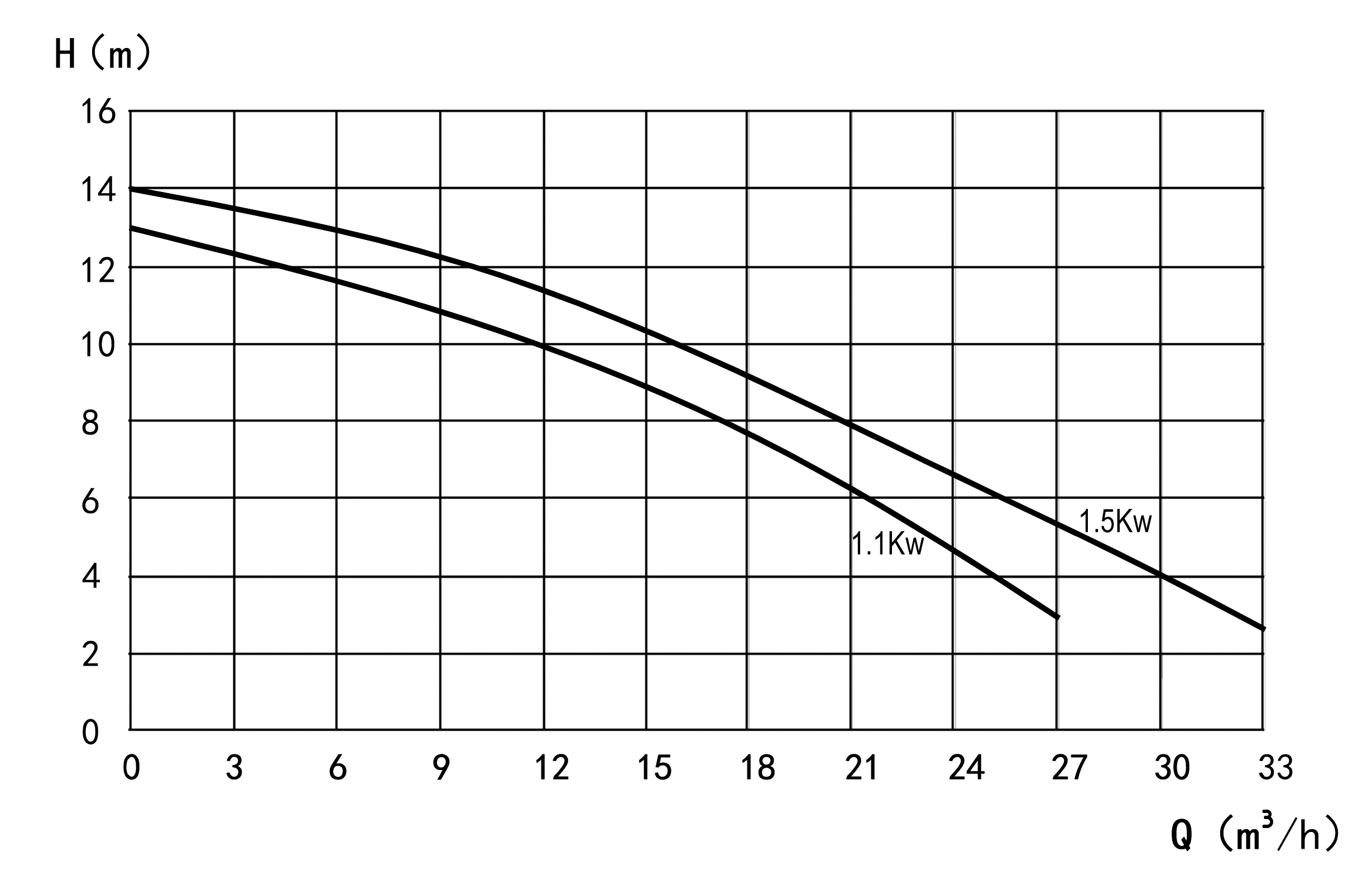

TECHNICAL PARAMETERS

Fittings:

Special backwash kit for sewage lifting units, including special backwash head, special control valve and connectors

Water seepage detection kit, including 3.5m long electrode wire and monitoring probe

Water leakage detection kit, including 3.5m long electrode wire, monitoring probe and special control valve
