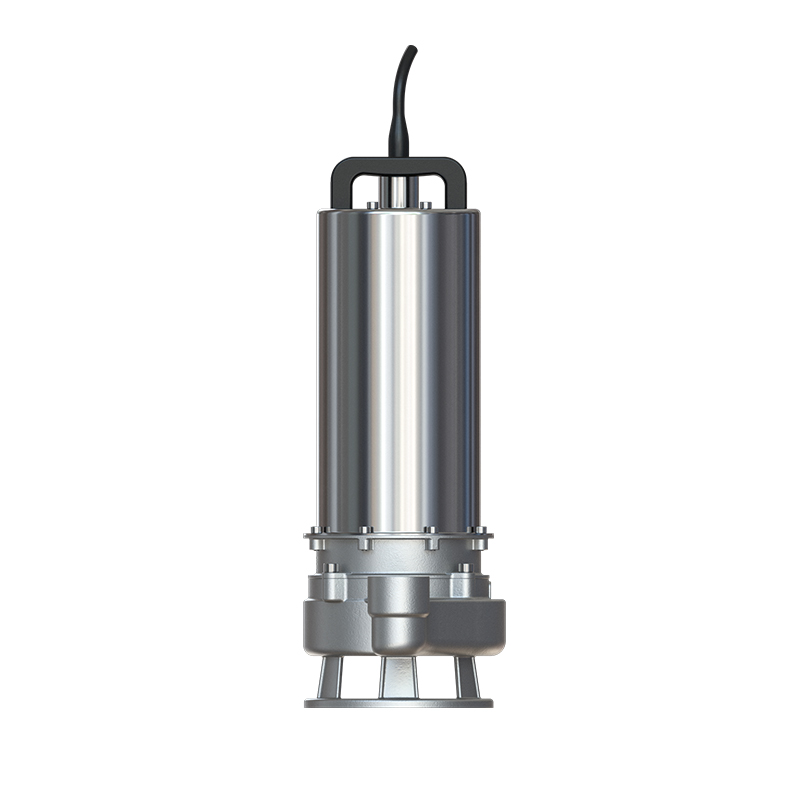

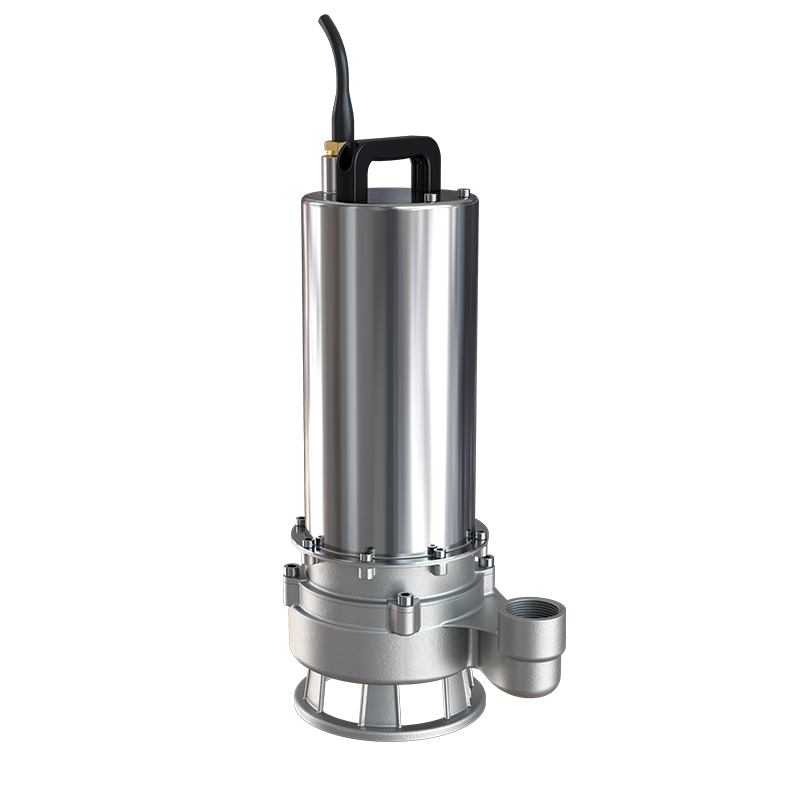

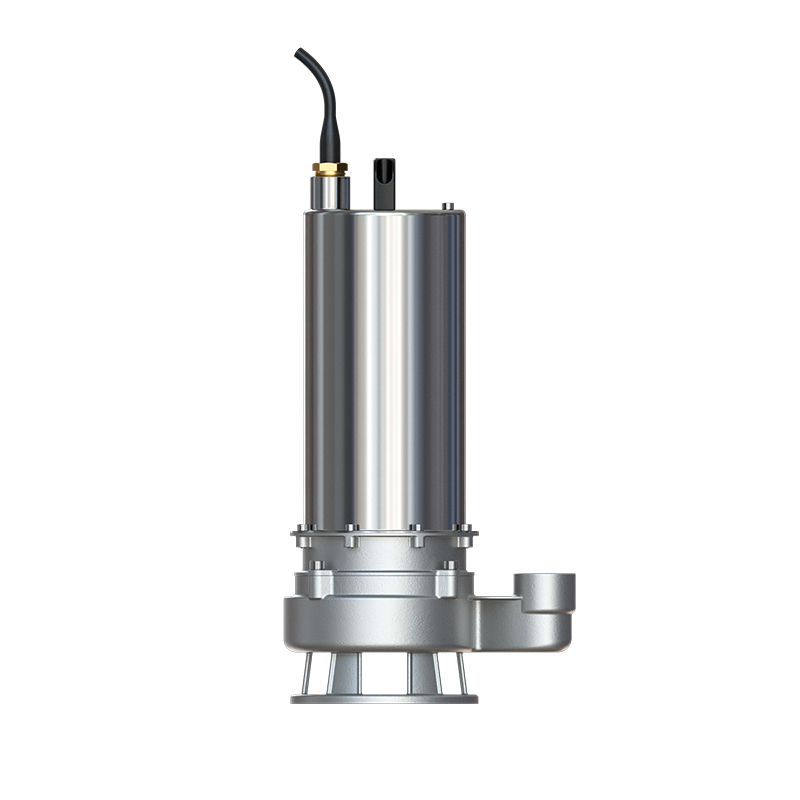

Stainless steel rainwater pump
Characteristic
·The pump body, motor housing, motor shaft, and oil cylinder are all made of 304 stainless steel.
·Adopting oil cooled motor
·Protection grade IP68, maximum diving depth 5m
·Solids handling: 30mm
·Pressurized outlet:1½″
·Adopting a multiple sealing structure consisting of double end mechanical seals, oil chamber seals, and lip shaped shaft seals
·Waterproof cable with plug: 8m
·S1 standard motor(support continuous operation)
·Built-in winding thermal protection
APPLICATION
· Domestic sewage, wastewater, rainwater and surface water discharge.

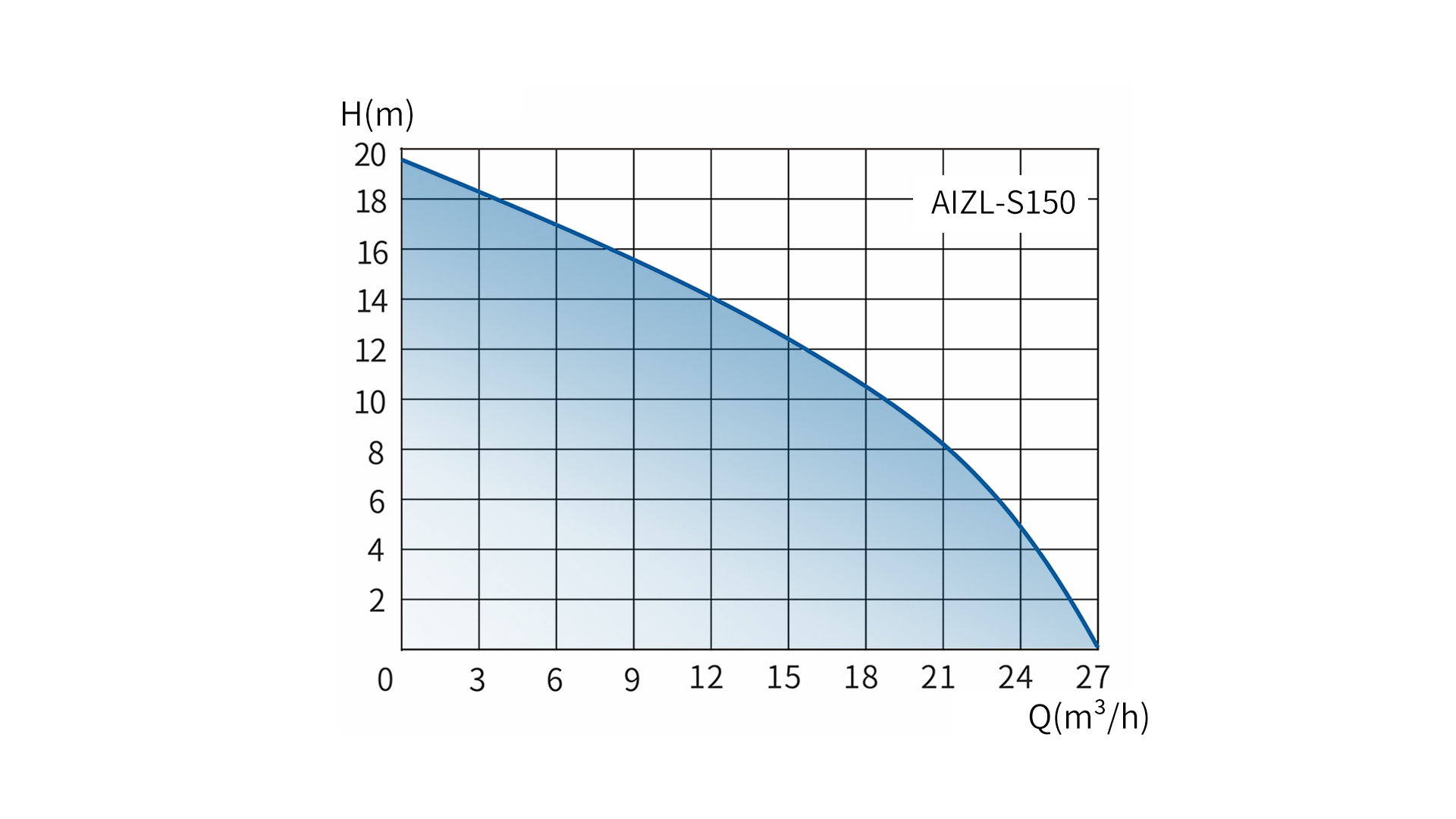

TECHNICAL PARAMETERS
Type | No. | P
(KW) | U [V] | I [A] | n [min-1] | Qmax [m3/h] | Hmax [m] | Solids Handling(mm) | Weight
(Kg) |
AIZL-S150 | 11047 | 1.5 | 220 | 9.5 | 2800 | 27 | 19.5 | 30 | 24 |
