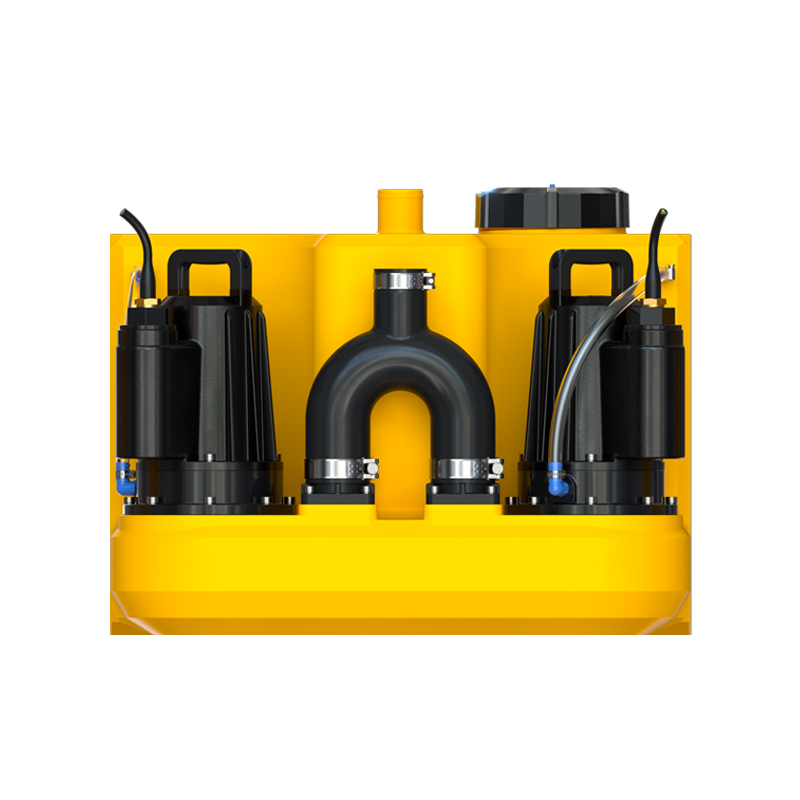

Two external large free-passage vortex pumps operating alternately; both pumps run simultaneously during peak demand
Heavy-duty cast-iron motors with oil-immersed cooling for quieter operation, long service life, and stable S1 continuous duty performance
Intelligent dual-pump controller with networking capability, remote control, commissioning, and alarm notifications
High-precision electronic pressure level sensor for accurate level detection and anti-entanglement performance
Double mechanical seals with integrated 150 ml oil chamber for enhanced sealing
Fully sealed HDPE tank with an effective volume of 210 liters
IP68 Protection Rate , fully submersible (controller excluded)
Flexible-connected, low-noise swing check valve
Ø75 mm large-passage level detection sensor to prevent detection failure
360° high-pressureAuto-cleaning system (optional)
Leakage monitoring alarm with automatic shut-off of mains water supply (optional)
Maximum operating temperature 60 °C, short-term up to 90 °C

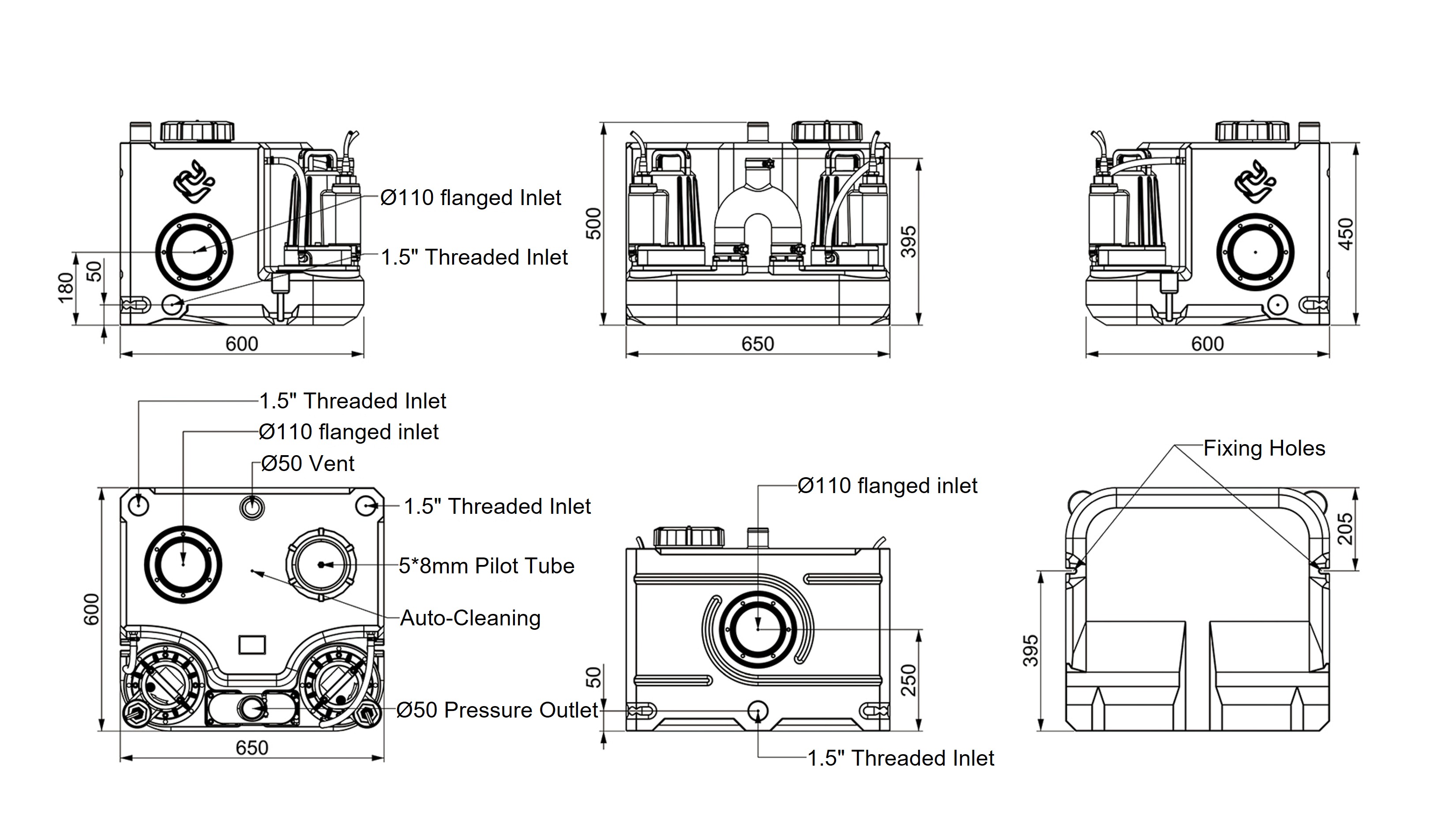

Inlets: 3 × Ø110, 3 × Ø50, 1 × Ø50/110
Vent : Ø75
