Intelligent Sewage Lifting Units -External single vortex pump
Characteristic
-Oil-cooled 304 stainless steel motor, offering low operational noise and an extended service life.
-S1 standard External Large-Diameter Vortex Pump, preventing blockages and ensuring stable operation.
-Intelligent AIZL-ICM controller - IoT Function, remote control, debugging, and push notifications.
-Utilizes a more advanced, precise, and stable electronic liquid level pressure sensor.
-Double-end mechanical seal and a 150ml oil chamber seal for enhanced sealing integrity.
- Fully enclosed HDPE container with 21- liter capacity.
-Anti-clogging dual-seal flexible inlet connection technology
-Flexible connection low-noise swing flap check valve
-Protection grade IP68, fully immersed (except for the controller).

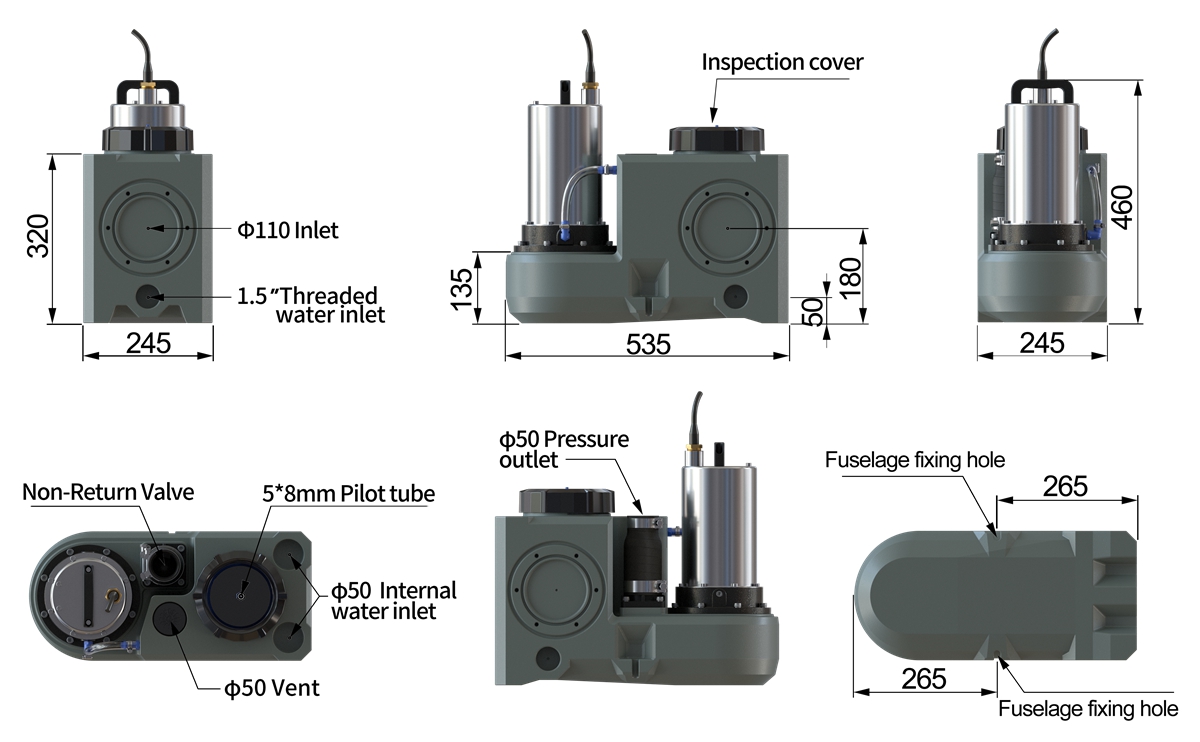

-3×Φ110，5×Φ50
-Pressurized Outlet：1×φ50mm
Application
-Suitable for sewage discharge from private basement bathrooms and kitchens in villas and large apartment complexes.
SCOPE OF SUPPLY
-PE water collection tank, integrated Check valve, stainless steel oil-cooled water pump with 3.5M cable, flexible inlet connectors, fasteners and air pressure sensing tube.
-AIZL-ICM intelligent controller

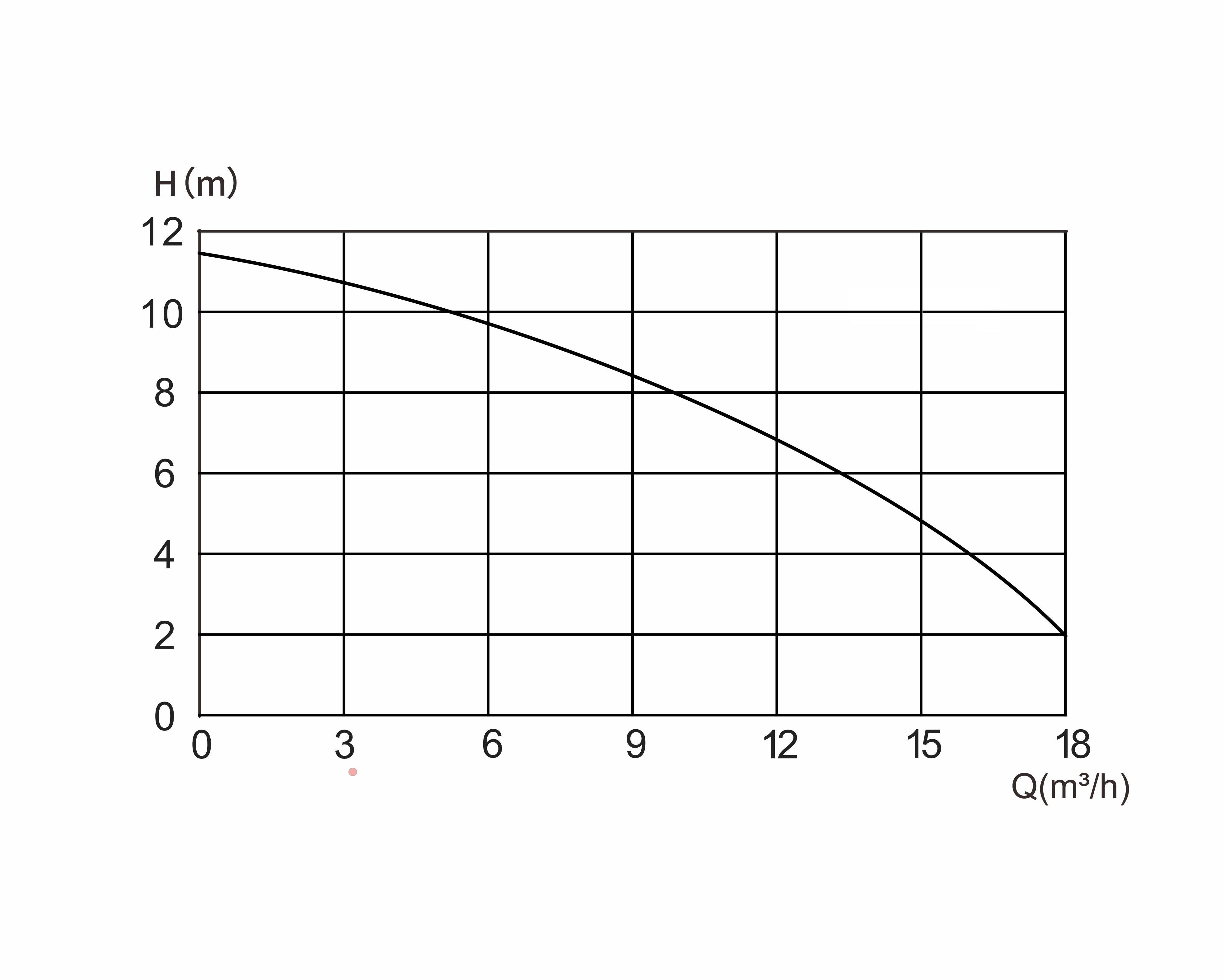

TECHNICAL PARAMETERS
Type | No. | P
(KW) | U [V] | I [A] | n [min-1] | Qmax [m3/h] | Hmax [m] | Solids Handling(mm) | Weight
(Kg) |
AIZL-750W | 11009 | 0.75 | 220 | 6 | 2800 | 18 | 11.5 | 40 | 27 |
