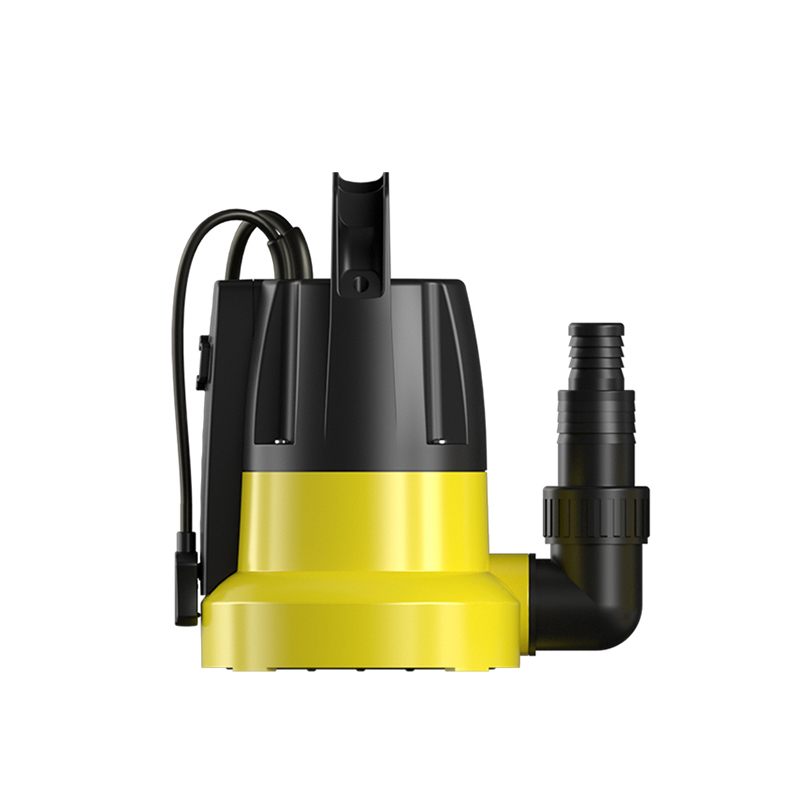

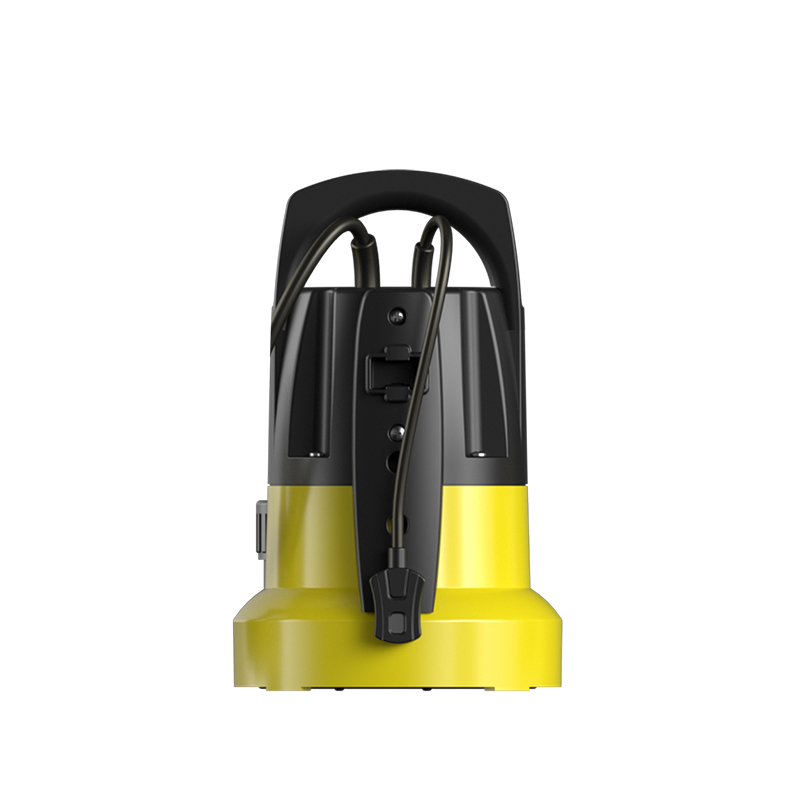

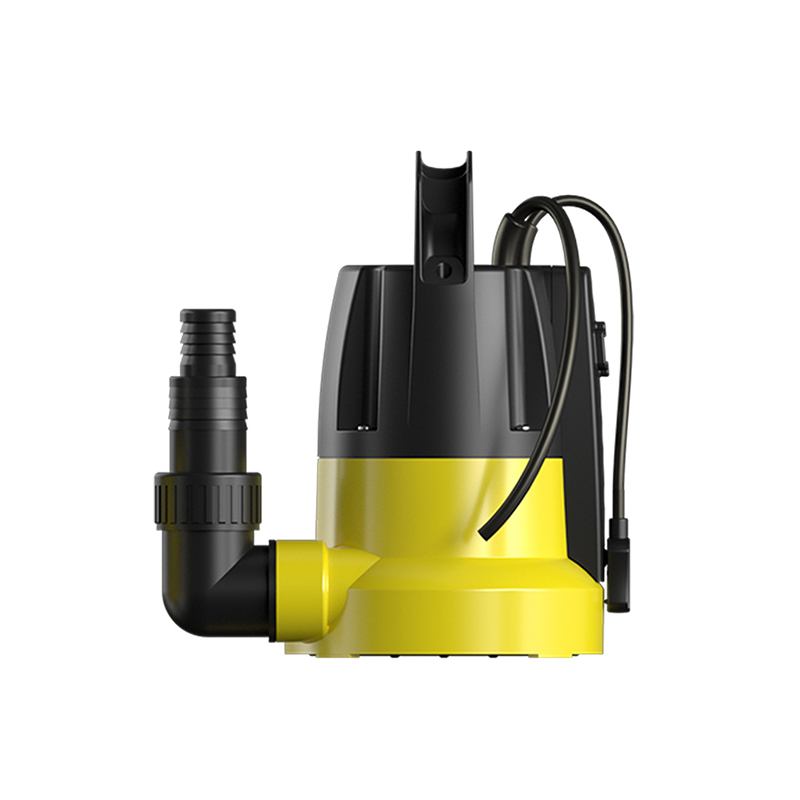

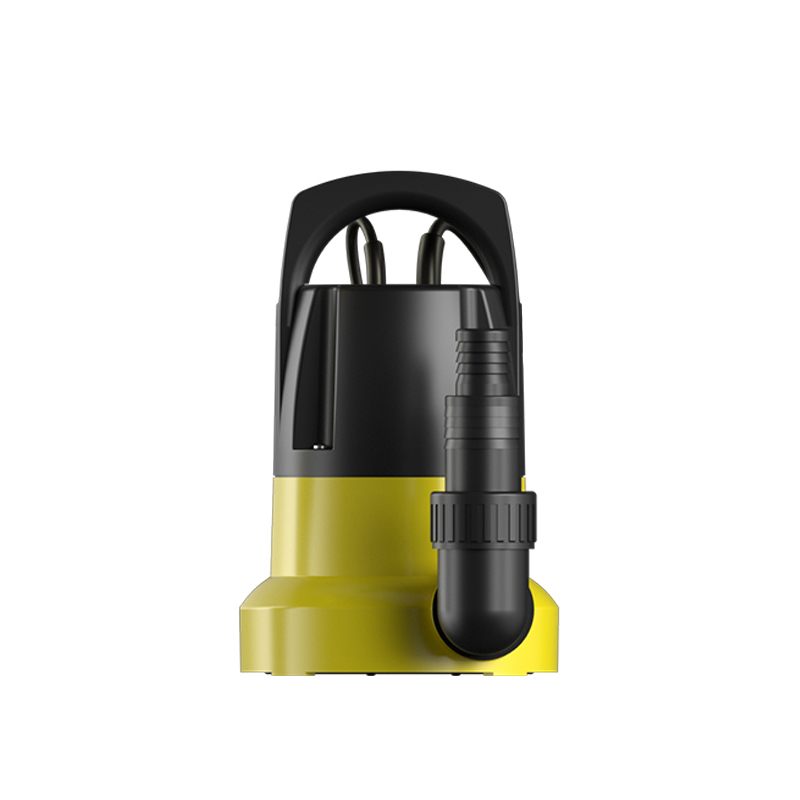

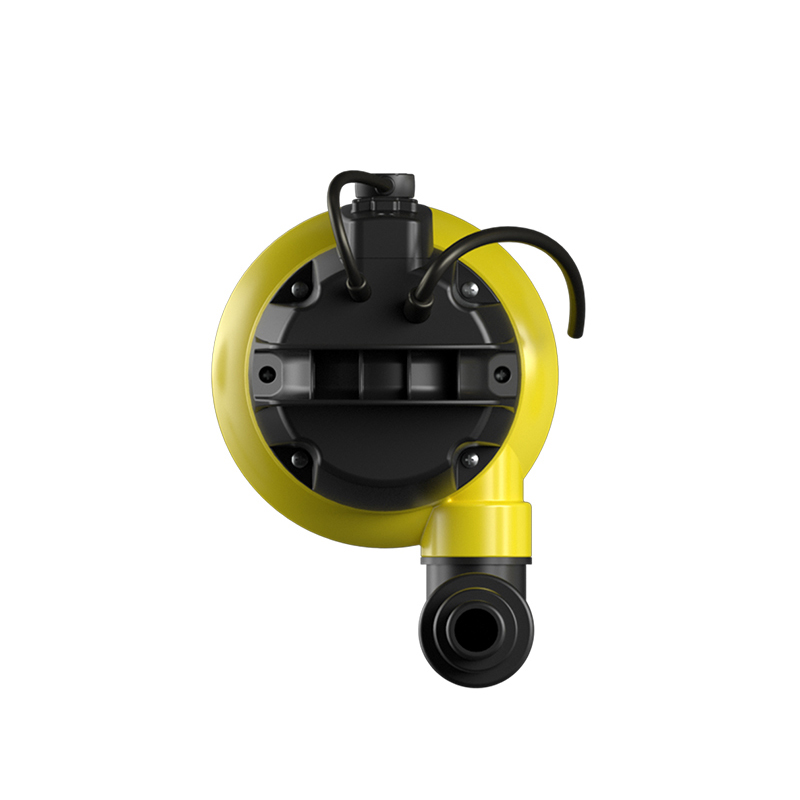

Low Suction Pump
Characteristic
· Low-suction pump designed with corrosion-resistant and impact-resistant
plastic and stainless steel.
· Protection grade IP68, can be completely submerged in water.
· Built-in motor winding protection and overload protection.
· Lip seal and additional shaft seal.
· Suction up to about 2mm.
· Cooling jacket single-phase motor.
· Solids handling: 5mm.
· Support both automatic and manual mode pumping.
· Integrated check valve.
· Working temperature max: 40℃.
· Waterproof cable: 10m
· 25mm hose or 1½″AG thread connection
APPLICATION
· Discharge of clear water with particles less than 5mm, such as: basements, ponds and wells
· Portable water pump for emergency drainage

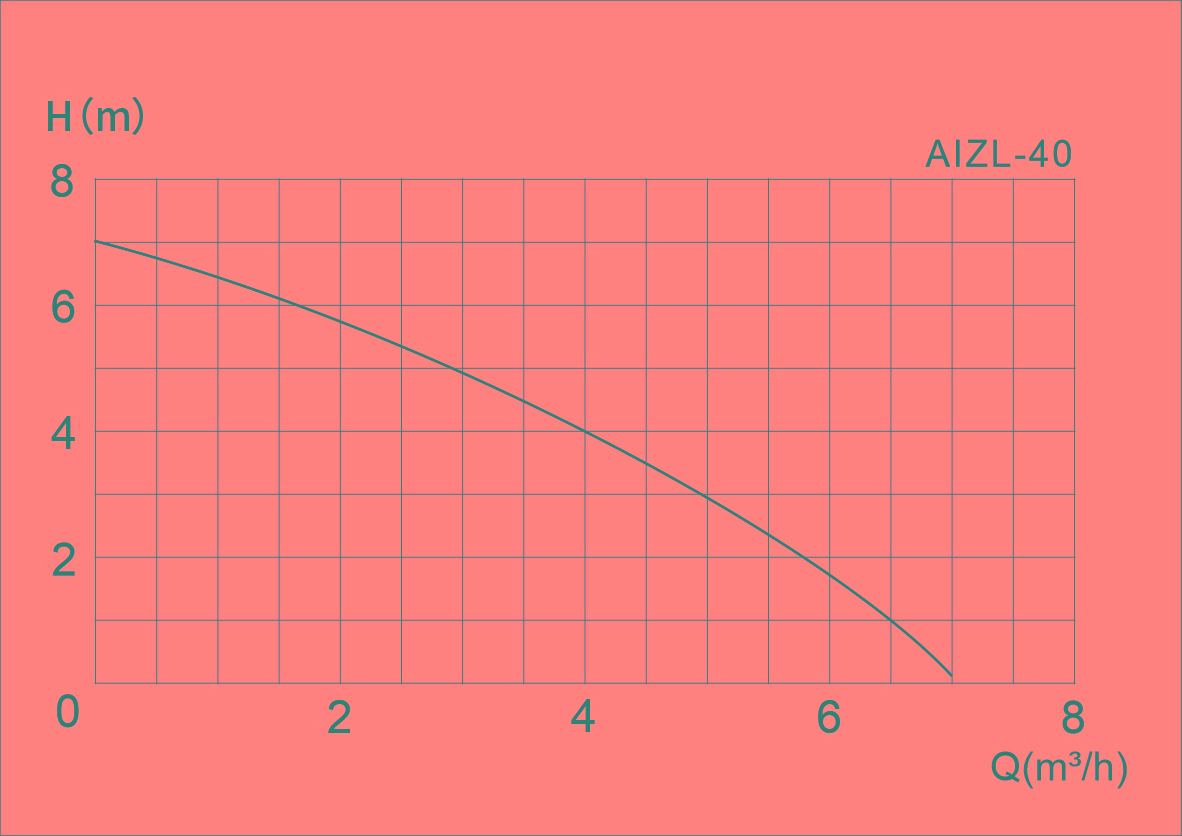

TECHNICAL PARAMETERS
Type | No. | P
(KW) | U [V] | I [A] | n [min-1] | Qmax [m3/h] | Hmax [m] | Solids Handling(mm) | Weight
(Kg) |
AIZL-25 | 15011 | 0.25 | 220 | 2 | 2800 | 6 | 6 | 5 | 3.9 |
AIZL-40 | 15012 | 0.4 | 220 | 3.2 | 2800 | 7 | 7 | 5 | 4.3 |
