Characteristic
· Protection grade IP68, can be completely submerged in water
· Built-in motor winding protection and overload protection
· Mechanical seal and additional shaft seal
· The pump, motor shell and motor shaft are all made of 304 stainless steel
· Cooling jacket single-phase motor
· Solids handling: 35mm
· 25mm hose or 1½″AG thread connection
· Compatible with automatic float switch
· Working temperature max: 40℃
· Waterproof cable: 10m

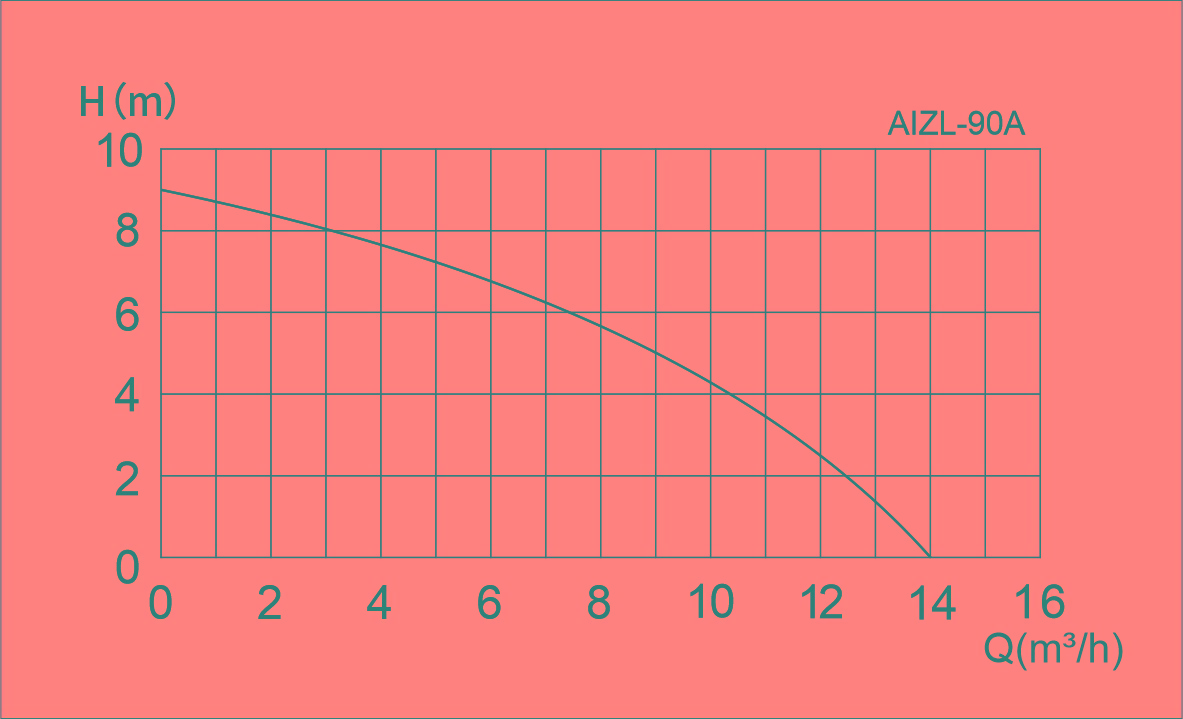

TECHNICAL PARAMETERS
Type | No. | P
(KW) | U [V] | I [A] | N[min-1] | Qmax [m³/h] | Hmax [m] | Solids Handling(mm) | Weight
(Kg) |
AIZL-90A | 15004 | 0.9 | 220 | 7.2 | 2800 | 14 | 9 | 35 | 6.8 |
APPLICATION
· Drainage of waste water in pits, basement or wine cellar
· For emergency overflow protection and flood control, as a portable pump for emergency drainage
· Discharge domestic wastewater without feces, such as shower, washing machine, sink wastewater, etc.
