Intelligent Sewage Lifting Units -External single vortex pump

Characteristic

-S1 Duty motor, which can work continuously.

-External 50mm large-diameter vortex pump to prevent blockage.

-Oil cooled 304 stainless steel motor which have low operation noise and longer service life.

- Intelligent controller - IoT Function, remote control, debugging, and push notifications.

-HD touch screen makes display and control more convenient.

-Precise electronic pressure sensor, which can monitor accurate liquid level and avoid winding.

-Adopt double-end mechanical seal and 150ml oil chamber seal.

-Fully enclosed HDPE container with 60 liters capacity.

-The protection grade is IP68-fully immersed (except for the controller).

-Swing flap check valve with low noise.

-Φ 75 large diameter liquid level detection sensor to avoid detection failure.

-360 ° rotary high-pressure backwashing system (optional).

-Water seepage monitoring alarm and tap water shutoff linkage system (optional).

-Operation temperature max 60 ℃, it can reach 90 ℃ in a short time.

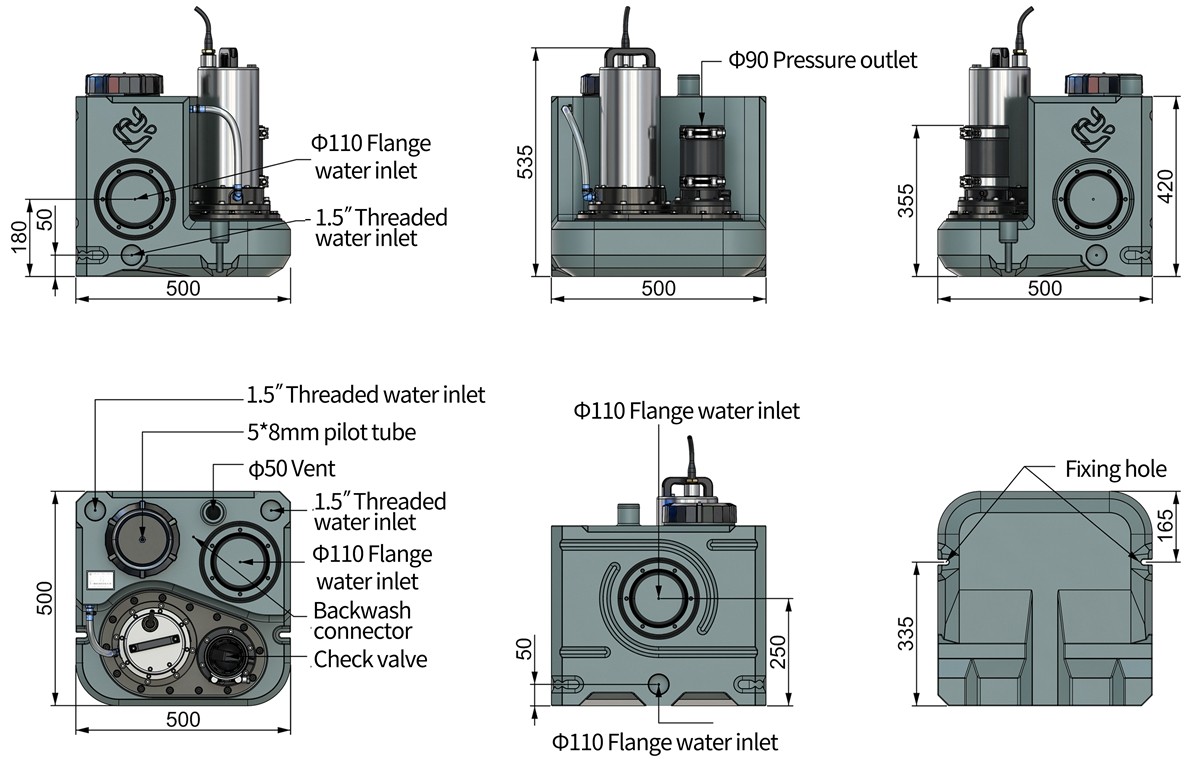

- Inlets：4×Φ110，5×Φ50

- Vent：φ50

Application

• Sewage discharge from private basement's bathrooms and kitchens in villas and large flat layer.

• Sewage discharge from restrooms and operation rooms in newly built and reconstructed small commercial places.

Scope of supply

-PE water collection tank, integrated check valve, stainless steel oil-cooled water pump with 3.5M cable, flexible inlet connectors and fasteners, pressurized outlet pipe kit, vents flexible connectors and fasteners and air pressure sensing tube.

- intelligent controller

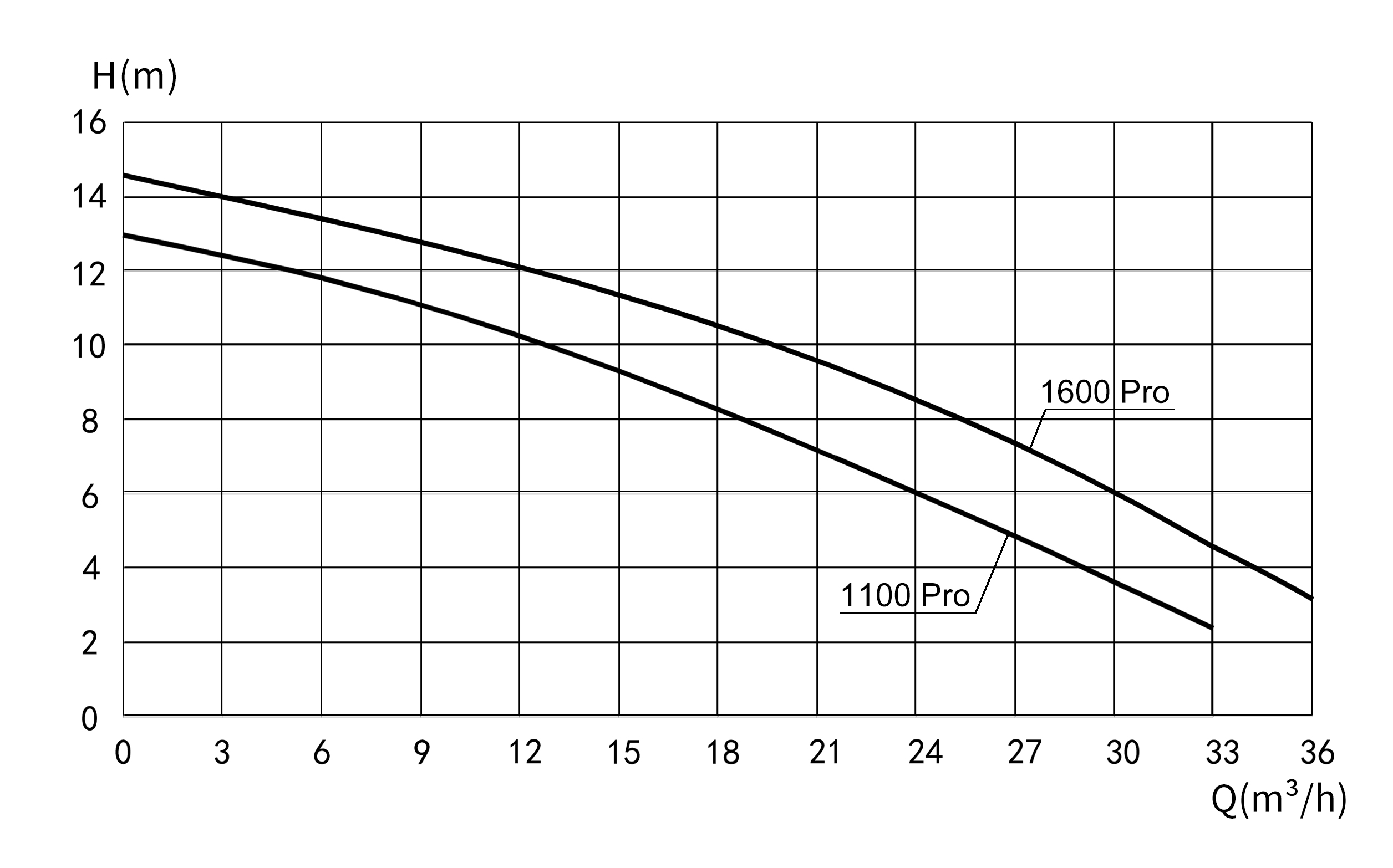

TECHNICAL PARAMETERS

Fittings:

-Special backwash kit for sewage lifting units, including special backwash head, special control valve and connectors

-Water seepage detection kit, including 3.5m long electrode wire and monitoring probe

-Water leakage detection kit, including 3.5m long electrode wire, monitoring probe and special control valve
